  • Bradley (8120-001480) Stainless Steel Grab Bar, Straight, 1-1/2" O.D., 48" L, Concealed Mnt, Smooth

Bradley (8120-001480) Stainless Steel Grab Bar, Straight, 1-1/2" O.D., 48" L, Concealed Mnt, Smooth

(0) No Reviews yet
SKU: 8120-001480


12 available for immediate shipment

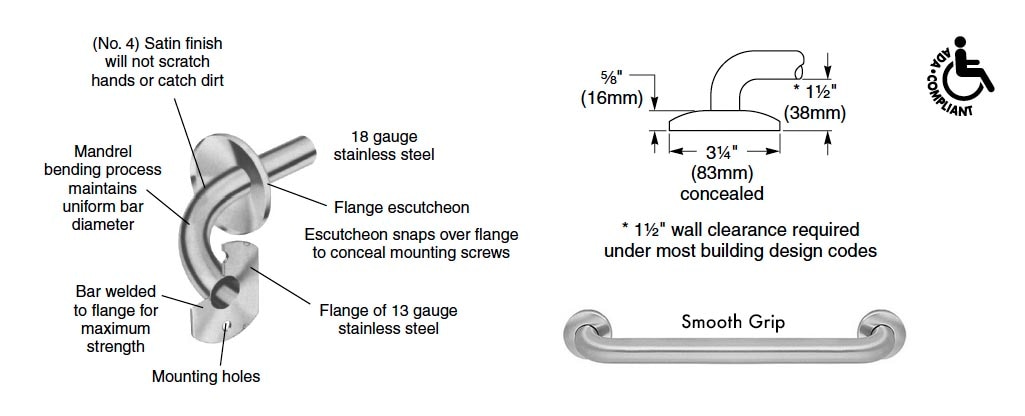

Top quality Bradley grab bar designed for commercial restroom applications. Escutcheon made from one-piece drawn construction with exposed surfaces in architectural satin finish. Escutcheon snaps over flange to conceal mounting screws. Architectural satin finish. 18 gauge stainless steel tubing.

Easy to install with optional anchoring devices also available from Bradley. Grab bar has a 1.5 inch outside diameter. Grab Bar is 48 inches long. Wall clearance is 1-1/2 inches. When properly mounted,grab bar meets or exceeds the requirements of ANSI A117.1, ADA and ABA Accessibility Guidelines for Buildings and Facilities (ADAAG).

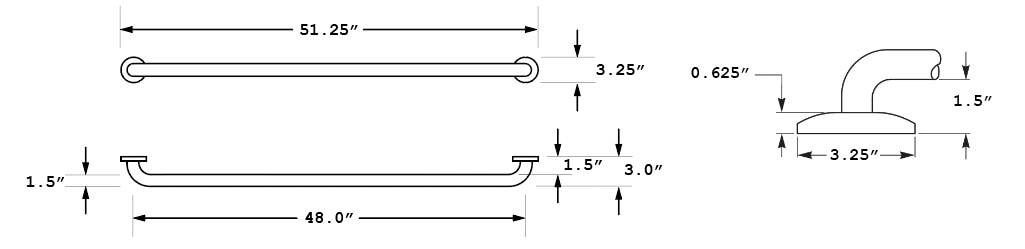

Measurement Diagram:

Type: Straight Grab Bar
Primary Material: Stainless Steel
Mount Type: Concealed (Snap Flange)
Outside Diameter: 1-1/2 inch
Rated Width: Not applicable
Rated Length: 48"
Grip Type: Smooth
Finish / Color: Satin
Load Capacity: 250 lbs.
Bariatric: No
Anti-Microbial: No
Overall Dimensions: 51-1/4" Long x 3-1/4" Tall x 3" Deep
Net Weight: 4.8
Shipping Dimensions: 52" Length x 4" Width x 4" Height
Shipping Weight: 5.6
UPC / GTIN: 084241007066
Manufacturer's Part No.: 8120-001480
Country of Manufacture: US
Warranty: 1 Yr. Manufacturer's
