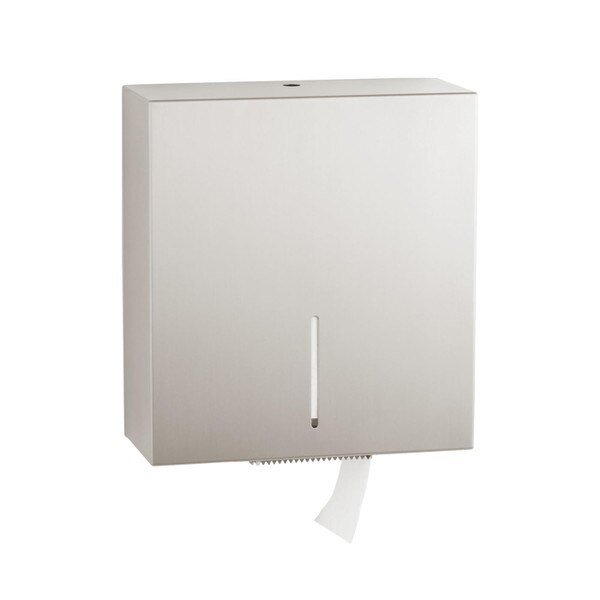

Bobrick B-9890 Fino Collection Jumbo Roll Toilet Tissue Dispenser, Stainless Steel, Satin Finish
 | The Fino line of restroom accessories is normally architecturally specified for locations looking to make a marquee design statement. These washroom fixtures are manufactured for Bobrick in the UK using a low volume, high-tech, CNC milling technique. The Fino series is made of a stainless steel that has a heavier gauge than other similar restroom accessories. As a result, this craftsman B-9890 toilet paper dispenser is more expensive than other standard, mass-produced toilet tissue dispensers. |
Surface-mounted jumbo roll toilet tissue dispenser. Holds up to 10" diameter rolls. Seam welded type 304, 18 gauge (1,2mm) stainless steel construction. Architectural satin finish. Flush lock located on top of unit.

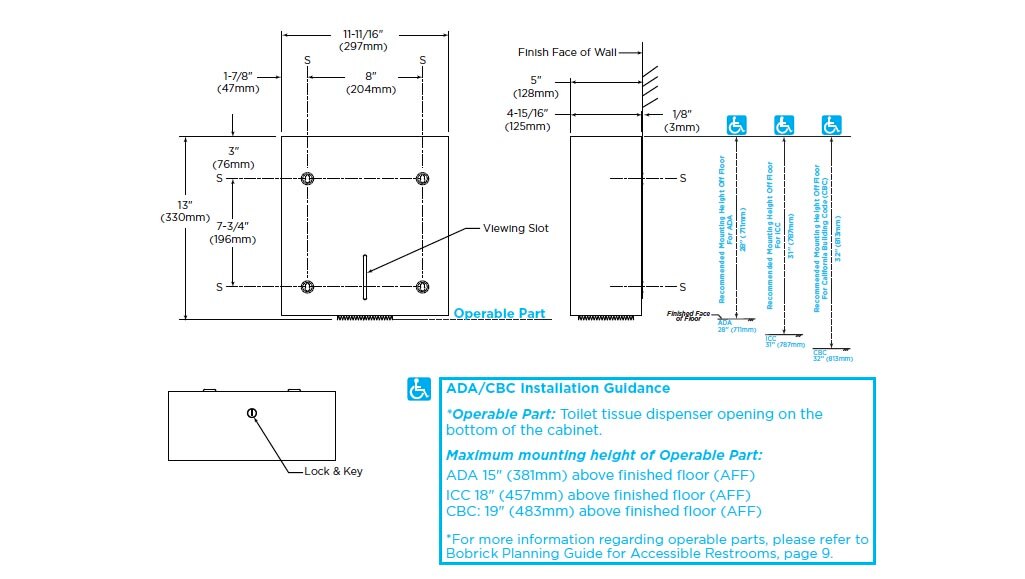

Measurement Diagram:
Alternatives:
For the matte black stainless steel version, see Bobrick B-9890.MBLK
| Primary Material: | Type 304, 18 gauge (1.2mm), stainless steel. |
| Color/Finish: | Architectural satin |
| Installation Type: | Wall / Surface |
| Capacity: | 1 Jumbo Toilet Paper Roll (up to 10" in diameter) |
| Overall Dimensions: | 11-11/16" Wide x 12-3/4" Tall x 5" Deep |
| Shipping Dimensions: | 15" Length x 13" Width x 7" Height |
| Shipping Weight: | 6 lbs. |
| Manufacturer Model No.: | B-9890 |
| UPC / GTIN: | Not published |
| Country of Manufacture: | UK |
| Warranty: | 5 Yr. Manufacturer's Limited |
Architectural Specifications:
Surface-Mounted Single Jumbo-Toilet Roll Holder door shall be 18 gauge (1,2mm) stainless steel with satin-finish. Cabinet shall be equipped with a lock keyed like other Bobrick washroom accessories. Lock is on top of unit flush with the surface - no protrusion. Cabinet shall have a slot to reveal toilet tissue supply inside cabinet. Spindle shall accommodate one toilet tissue roll up to 10" (255mm) diameter with a 1-5/8" (40mm) diameter core roll convertible for 3" (75mm) diameter core rolls or 2-1/8" (55mm) diameter core roll by adding rubber o-rings (2) furnished.
