Secured from the front. Type 304 stainless steel powder coated white. Backplate is 14-gauge (2mm) with a side length of 5 1/8" (130mm). Ligature Resistant (LR) Auto-release hooks have an adjustable releasing range of zero to twenty-five pounds. The auto-release function deters utilizing the product as a point of ligature.
- Housing is fabricated from 14-gauge 304 stainless steel and powder coated white
- Unit is furnished with four (4) 1/4"- 20 UNC tamper resistant flat screws and one (1) 5/32" hex bit for center reject pin for use with installer provided wall anchors
- Square Hook plate has a side length of 5 1/8" (130mm)
- Auto-release hooks have an adjustable releasing range of zero to twenty-five pounds

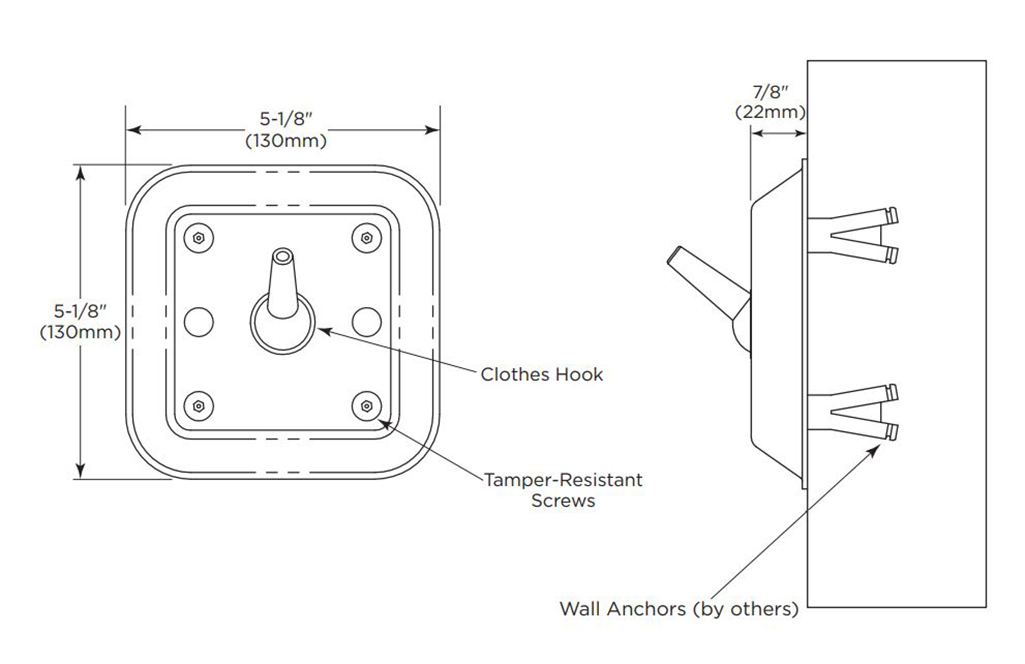

Measurement Diagram:

Architectural Specification:
Auto-release hook shall be type 304 stainless steel; exposed surfaces on the plate shall be powder coated white. Square Hook plate has a side length of 5 1/8" (130mm). Auto-release hooks have an adjustable releasing range of zero to twenty-five pounds. The release point is factory set to release at 10 ± 2 pounds at the base of the hook.
