This paper holder is designed for standard toilet paper rolls that are between 4-3/8" and 4-1/2" wide. Not compatible with other sizes.
Secured from the front. Type 304 satin-finish stainless steel. Back plate is 14-gauge (2mm). Hook snaps down for safety if excessively loaded. Back plate 4" W x 4" H x 7/8" D (102 x 102 x 22mm) Ligature Resistant (LR) semi-recessed toilet tissue holder shall be 16-gauge, type 304 stainless steel with all exposed surfaces powder coated white. Unit shall dispense one standard-core toilet tissue roll up to 4-1/2" (114mm) diameter. Spring loaded buttons are designed to release toilet tissue deter use as a point of ligature.
- Paper holder housing fabricated from 16-gauge, type 304 stainless steel
- Units hold one toilet tissue roll between 4-3/8" and 4-1/2" wide in diameter
- Installation required a rough wall opening approximately 7-1/4" X 6-1/4" x 3" deep to accommodate tissue paper holder
- Spring loaded buttons are designed to release toilet tissue deter use as a point of ligature

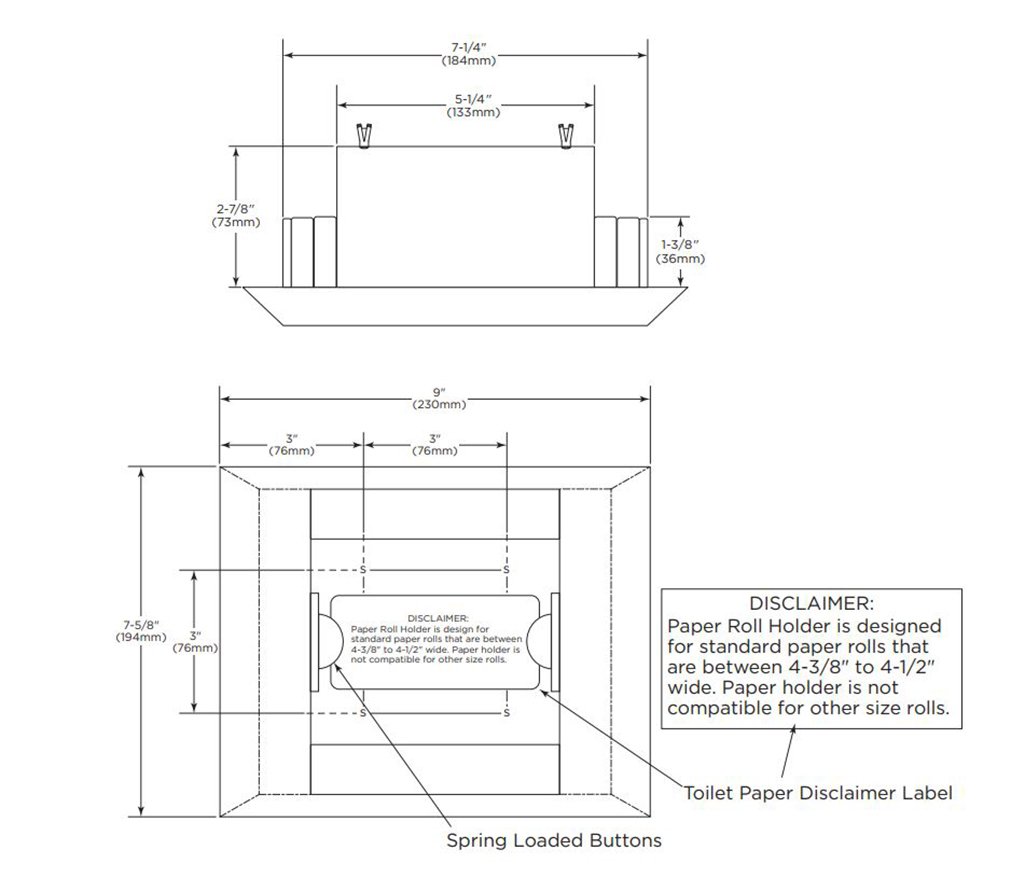

Measurement Diagram:
