Ligature Resistant (LR) Vertical Bay Holder shall be type 304 stainless steel; exposed surfaces shall be powder coated white. Unit shall be capable of dispensing a total of 400 (200 per bay) C-fold paper towels measuring 3-1/8" to 3-5/8" (79 to 97mm) wide. Open bay design deters use as a ligature point. Furnished with one (1) 5/32" hex bit for center reject pin and six (6) 1/4"-20 UNC tamper resistant screws for use with wall anchors (not included).
- Paper Holder is fabricated from 16-gauge, type 304 stainless steel with all exposed surfaces powder coated white
- Units dispenses C-fold paper towels 3-1/8" to 3-5/8" (79-97mm)
- Capacity: 200 C-fold paper towels per bay
- Sloping top and open bays discourage use as a point of ligature
- Open bay design eliminates the need for a lock and has no moving parts that can be vandalized

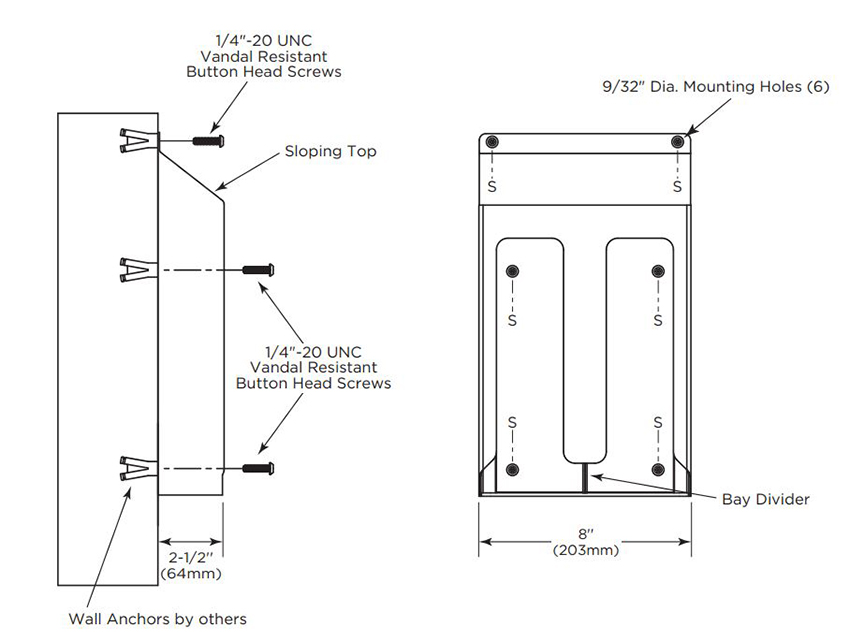

Measurement Diagram:
Architectural Specification:
Vertical Bay Holder shall be type 304 stainless steel; exposed surfaces shall be powder coated white. Unit shall be capable of dispensing a total of 400 (200 per bay) C-fold paper towels measuring 3-1/8" to 3-5/8" (79 to 97mm) wide. Open bay design deters use as a ligature point.
