The Fino line of restroom accessories is normally architecturally specified for locations looking to make a marquee design statement.
These washroom fixtures are manufactured for Bobrick in the UK using a low volume, high-tech, CNC milling technique. The Fino series is made of a stainless steel that has a heavier gauge than other similar restroom accessories. As a result, this craftsman B-9547 toilet paper holder is more expensive than other standard, mass-produced toilet roll holders.
Machined stainless steel fixed double toilet roll holder.
- Height: 1-11/32″ (34mm) - Depth: 2 -5/16″ (75mm) - Width: 10-1/2″ (266mm)
- Material: Type 303 stainless steel.

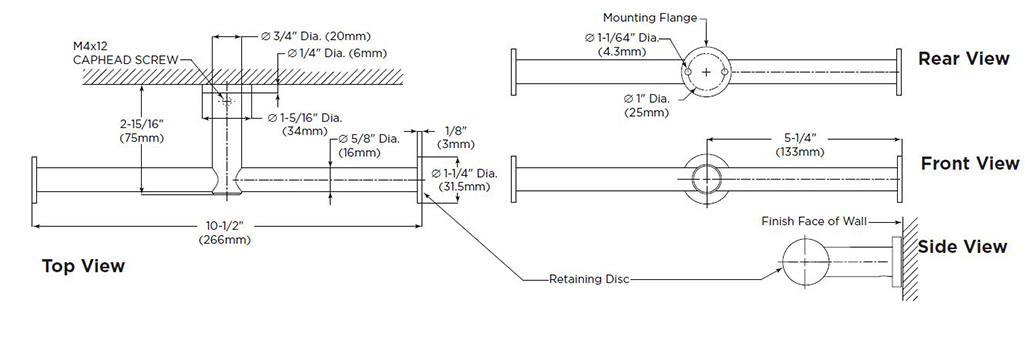

Measurement Diagram:
Architectural Specification:
Double Toilet Roll Holder shall be type 303 machined stainless steel in satin finish. Double Toilet Tissue Dispenser shall have 3/4" (20mm) diameter machined post with integrated 5/8" (16mm) diameter machined Dispenser Bar. Retaining Discs shall be type 303, 1-1/4" (31.5mm) diameter, 1/8" (3mm) thick stainless steel with satin finish permanently connected to Dispenser Bar. Concealed mounting flange shall be 5/32" (4mm) thick threaded solid stainless steel plate, 1-5/16" (34mm) diameter and equipped with two screw holes for attachment. Threaded solid flange cover shall be 1/16" (2mm) thick stainless steel in satin finish, 1-5/16" (34mm) diameter. Set screw shall fasten the post to the flange and secures the flange cover.
