The Fino line of restroom accessories is normally architecturally specified for locations looking to make a marquee design statement.
These washroom fixtures are manufactured for Bobrick in the UK using a low volume, high-tech, CNC milling technique. The Fino series is made of a stainless steel that has a heavier gauge than other similar restroom accessories. As a result, this craftsman B-9542 coat hook is more expensive than other standard, mass-produced coat hooks.

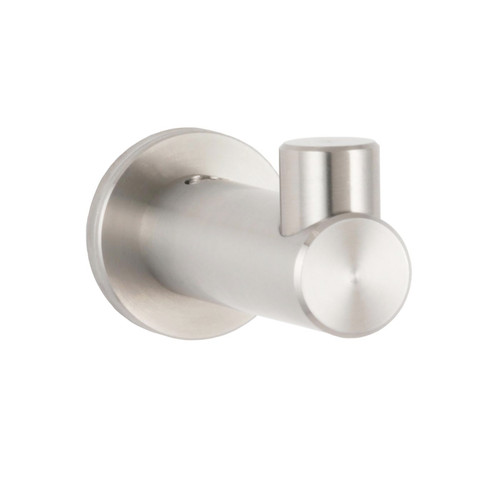

Machined stainless steel coat hook. Modern stylish design. Can support loads of up to 150lbs. (68kg.) if properly installed. Mounting fasteners not included.
- Height: 1-1/2″ (37.5mm) - Depth: 2-1/2″ (63.5mm) - Width: 1-11/32″ (34mm)
- Material: Type 303 stainless steel.
Measurement Diagram:
Architectural Specification:
Coat Hook shall be type 303 machined solid stainless steel in satin finish. Coat Hook shall have 20mm (3/4") diameter post with integrated 16mm diameter Hook Pin. Concealed mounting flange shall be 4mm (5/32") thick machined solid stainless steel plate, 34mm (1-5/16") diameter and equipped with two screw holes for attachment. Machined solid flange cover shall be 2mm (1/16") thick stainless steel in satin finish, 34mm (1-5/16") diameter. Set screw shall fasten the post to the flange and secures the flange cover.
