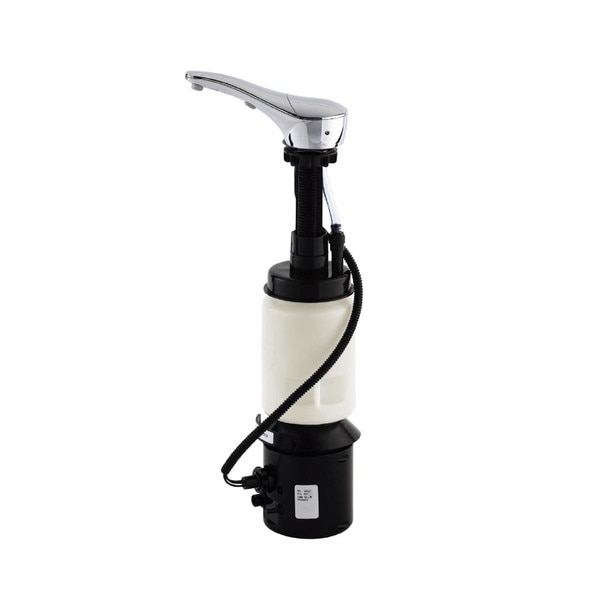

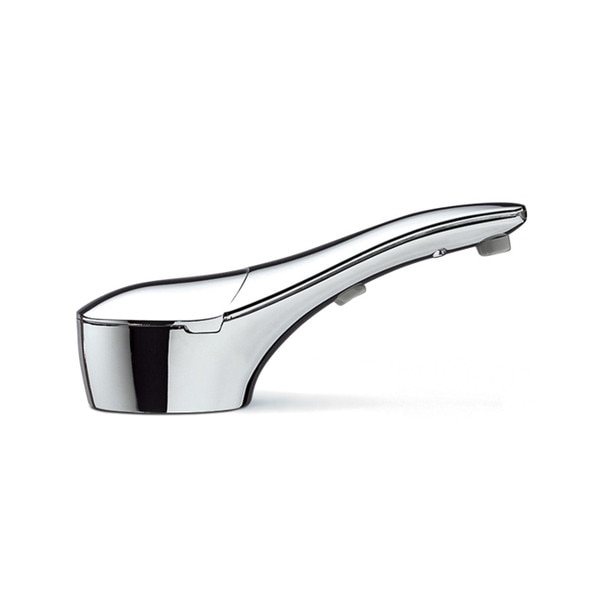

Bobrick B-858 Deck Mount Automatic Liquid Soap Dispenser, Polished Chrome, 34 oz.
Automatic, “top fill”, “touch-free” Designer Series Soap dispenser with die-cast zinc body construction. Polished chrome finish. Uses universal bulk liquid soaps for significant cost-in-use savings. Dispenser offers a unique portion control feature that optimizes patron satisfaction with operating budget.
Available in five different finishes (Polished Chrome, Polished Nickel, Brushed Nickel, Polished Brass and Matte Black).
Automatic faucet available in a matching finish (with adjustable time-out duration’s, line purging, and adaptable sensor range).
6V AC Adapter — 6V AC Adapter with U.S. Plug comes standard
Designers Note: Bobrick liquid soap dispensers are designed to dispense commercially marketed all purpose liquid hand soaps that are not alcohol or iodine based.

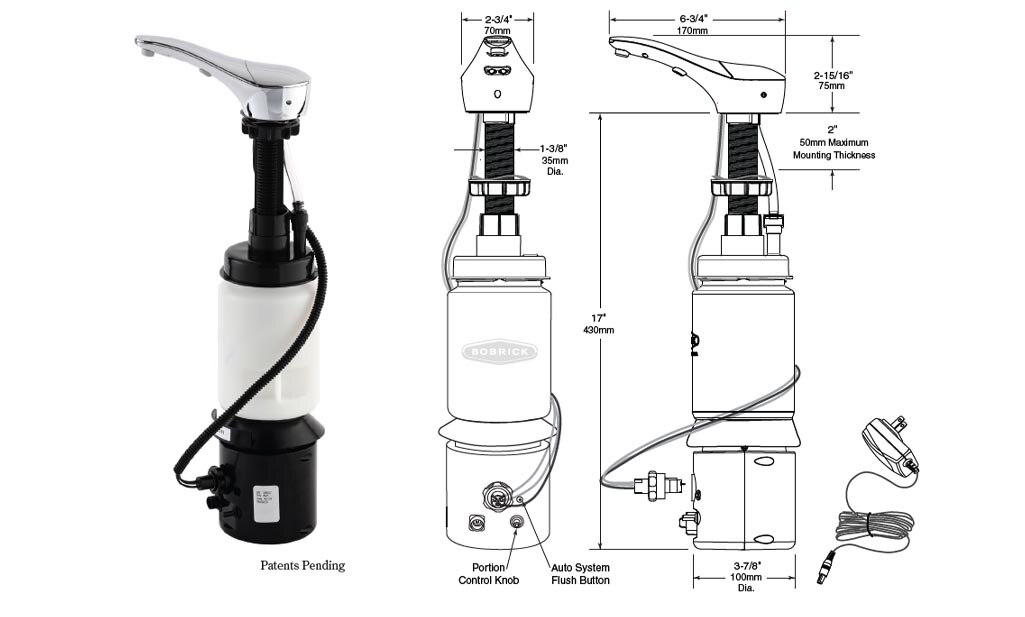

Measurement Diagram:
Alternatives:
Looking for the matching faucet? See Bradley B-8878 Designer Series Polished Chrome Faucet.
| Brand: | Designer Series |
| Manufacturer Model No.: | B-858 |
| Mount: | Lavatory (Sink) |
| Operation: | Automatic (Hands-Free) Sensor Activated |
| Color / Finish: | Polished Chrome |
| Primary Material: | Die-cast zinc |
| Capacity: | 34 fl. oz. |
| Soap Type: | Liquid |
| Power: | 6V AC Adapter with U.S. Plug comes standard |
| Overall Dimensions: | 19-7/8" Tall x 3-7/8" Wide x 6-3/4" Deep Spout: 2-3/4" Wide x 2-15/16" Tall x 6-3/4" Deep |
| Rough-In: | 1-3/8" Dia. Mounting hole. Minimum 18" (455mm) vertical and 5" (125mm) diameter clearance required. |
| Shipping Dimensions: | 14.3" Length x 14" Width x 6" Height |
| Shipping Weight: | 3.5 lbs. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | CHN |
| Warranty: | 3 Yr. Manufacturer's |
| Additional Comments: | Designers Note: Unit is not compatible with above the counter sink rims greater than 1-1/2" W x 1" H (25 x 40mm) or 2-1/2" W x 1/2" H (65 x 12.7mm). Caution: Sink rim must not come into contact with activation area. For more information refer to Form No.824-307 Mounting Template in the Installation Instructions |
Architectural Specifications:
Designer Series Counter-Mounted Automatic Liquid Soap Dispenser shall dispense adjustable amount .4 to 3ml of commercially marketed all-purpose bulk liquid hand soaps, do not use iodine based or alcohol based soaps or sanitizers. Spout assembly shall be die cast zinc, with one of four finishes. Stem is integrated with spout and shall be Delrin plastic and accommodate up to 2" (50mm) thick counter tops. Unit shall be equipped with oversized funnel shape opening, covered by a 180° rotatable lid with concealed locking mechanism to allow for top filling. Unit shall have LED indicators to show unit is ready for activation. Unit shall have IR Sensor located on PC board housed in a water-resistant plastic housing. Activation Lens shall allow for defined activation range to eliminate chance of false activation during hand washing. Portion Control Knob shall allow field adjustment of desired volume of soap dispensed per hand wash. Unit shall be equipped with an Automatic System Flush Button to allow for cleaning and maintenance. Comes with 6V AC adapter.
Product Group Variations:
How to install your new Designer Series soap dispenser by Bobrick. (Covers B-858, as well as B-84_ and B85_ dispensers.)
Maintenance guidelines to keep your Designer Series Soap Dispenser working flawlessly.
