Automatic, “touch-free” liquid dispenser minimizes cross contamination. Uses universal bulk liquid soaps for significant cost-in-use savings.
This “Top-fill “dispenser offers a unique portion control feature that optimizes patron satisfaction with operating budget.
Available in a chrome finish for design continuity.
Designers Note: Bobrick Liquid soap dispensers are designed to dispense commercially marketed all purpose hand soaps including liquid and lotion soap and synthetic detergents.
Acceptable soaps need to have a viscosity in the range of 1cP to 19,000cP (centipoise).
- New installation – Ensure mounting hole is 1-3/8” (35mm) in diameter. Refer to installation instruction with mounting template link below.
- Existing/Retrofit – Ensure mounting hole is 1-3/8” (35mm) in diameter, if necessary, enlarge opening using appropriate hole saw. Refer to installation instruction with mounting template link below.
- Battery Pack requires 4 “D” Cell Batteries (Not included)
- Optional 6V AC Adapter with U.S. Plug available. Order Part No. 3974-57

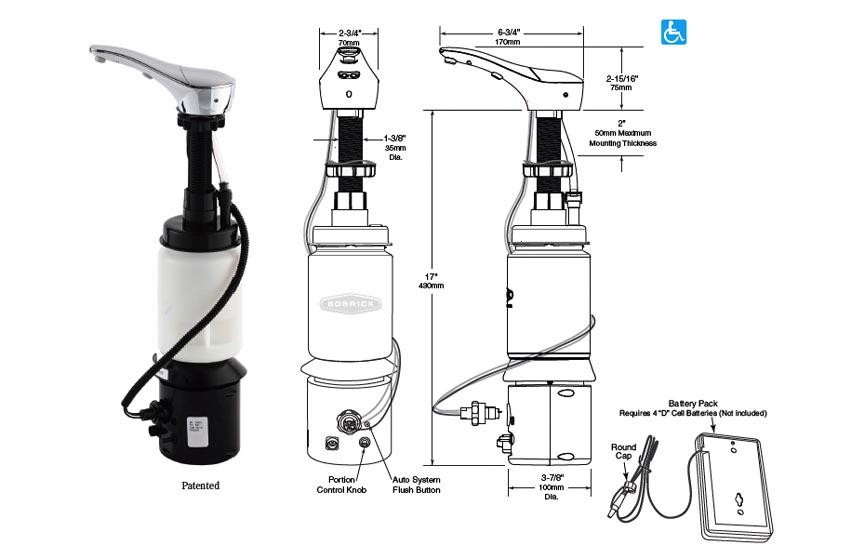

Measurement Diagram:
