  • Bobrick B-8221 Deck Mount Manual Top Fill Liquid Soap Dispenser, 4 in. Spout, 20-fl. oz.

Bobrick B-8221 Deck Mount Manual Top Fill Liquid Soap Dispenser, 4 in. Spout, 20-fl. oz.

(0) No Reviews yet
SKU: B-8221


4 available for immediate shipment

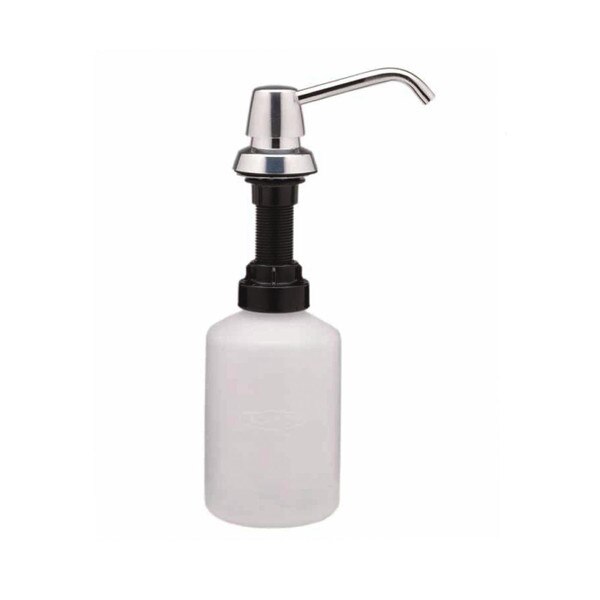

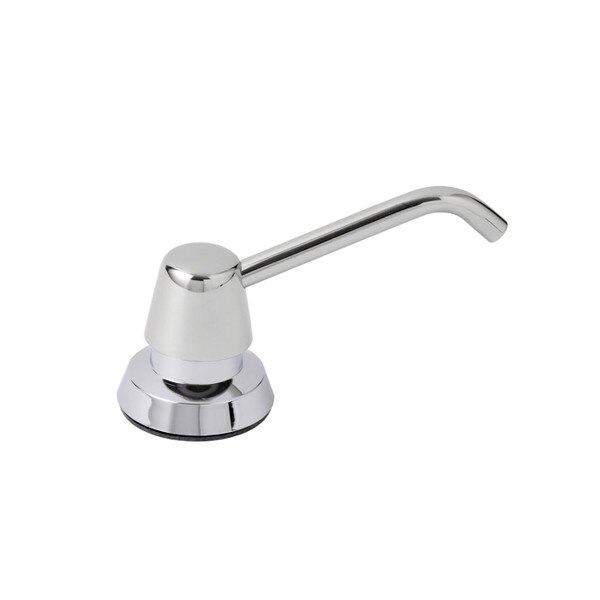

The Bobrick B-8221 corrosion resistant, manual top-fill liquid soap dispenser has vandal-resistant locking cover and free-turning spout.

Body and shank are high-impact-resistant ABS plastic with a shatter-resistant polyethylene container., 20-fl. oz. capacity, 4″ (100mm) spout length, 4″ (100mm) mounting thickness, bright-polished spout.

Bobrick liquid soap dispensers are designed to dispense commercially marketed all purpose non-iodine hand soaps including liquid and lotion soaps and synthetic detergents. Do not use alcohol based sanitizers.

  • Type-304 stainless steel with bright polished finish piston, spout, and top cover
  • Designed for installation in 1'' (25mm) diameter hole in porcelain-enameled steel, cast-iron or vitreous-China lavatories, as well as in countertops adjacent to lavatories
  • Capacity: 20-fl oz
  • Clearance required for container diameter is 3-3/8'' (85mm).
  • 4 in. Spout, 34-fl. oz. (1.0-L) Capacity

Measurement Diagram:

Brand: Bobrick
Manufacturer Model No.: B-8221
Mount: Counter or Lavatory
Operation: Push Button
Soap Type: Liquid
Capacity: 20 oz.
Cover Material: Polished Chrome Plated ABS Plastic
ADA Compliant: Not ADA
Overall Dimensions: Above Counter: 2-1/16" Dia. (4" Spout), 3" Tall
Below Counter: 14-5/8" Tall x 3-5/16" Dia.
Total: 3-5/16" Wide x 17-5/8" Tall x 5-5/32" Deep
Net Weight: 0.4 lbs.
Shipping Dimensions: 10.5" Length x 5.5" Width x 3.5" Height
Shipping Weight: 0.9 lbs.
UPC / GTIN: 716954004420
Country of Manufacture: United States
Warranty: 3 Yr. Manufacturer's Limited

Architectural Specifications:

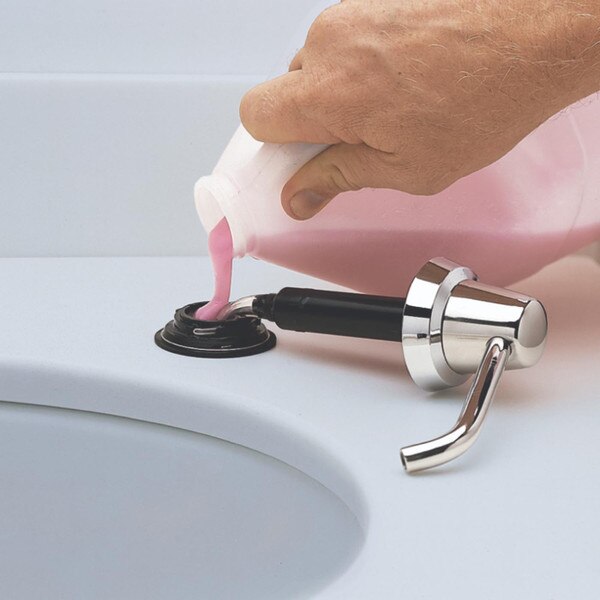

Lavatory-mounted soap dispenser shall dispense commercially marketed all purpose hand soaps. Piston and spout assembly shall be Type-304 stainless steel with bright polished fi nish. Escutcheon shall lock to body with concealed locking mechanism that is opened only with special key provided. Spout shall rotate 360° without damage to valve mechanism. Piston, spout, and supply-tube assembly shall be removable from top for fi lling and maintenance. Valve shall be equipped with plastic cylinder, stainless steel spring, U-packing seal, and duckbills. Shank shall accommodate mounting thicknesses up to 1" (25mm). Translucent, shatter-resistant polyethylene container shall have a capacity of 20-fl oz (0.6-L).
