Satin finish stainless steel. Contoured hook is 3 15/16" (100mm) wide. Flange is 2" x 2" (50 x 50mm). Projects 1 7/8" (50mm) from wall.
- Flange & Support Arm — 18-8, type-304, 22-gauge (0.8mm) stainless steel. Concealed, 18-gauge (1.2mm) stainless steel mounting bracket. All-welded construction. Secured to wall plate with a stainless steel setscrew.
- Concealed Wall Plate — 18-8, type-304, 19-gauge (1.0mm) stainless steel.
- Cap — 18-8, type-304, 14-gauge (2.0mm) stainless steel. Welded to the support arm.
- Satin-finish stainless steel

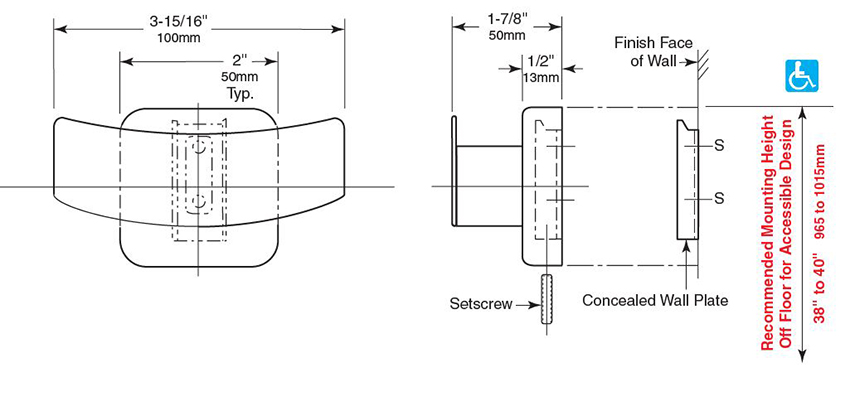

Measurement Diagram:
