Type 304 stainless steel with one-piece seamless construction. Satin finish. Chrome-plated plastic spindles hold rolls up to 5 1/8″ (130mm) diameter (1500 sheets). Double roll model measures 12 5/16″ W x 6 1/8″ H (315 x 155mm). Mounting: clamps for securing to stud walls or countertop aprons. Rough Wall Openings: 11 3/4″ W x 5 1/4″ H x 3 3/8″ min. depth (300 x 135 x 85mm). With stainless steel hoods. Theft-resistant toilet tissue spindles, which are removable only with special key provided, are available as an optional accessory - part no. 283-604.
- Satin-finish stainless steel
- Spindles (2) — Chrome-plated plastic. Equipped with heavy-duty internal springs

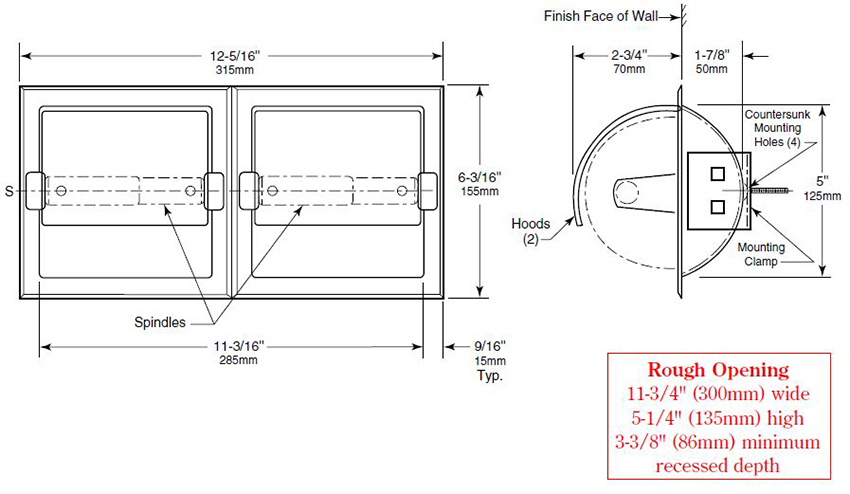

Measurement Diagram:
