Surface-mounted, hospitality/hospital grade stainless steel towel bar. Concealed-type mounting brackets. Rated length is 24". Satin finish. 3/4" Square bar.
- Note: Centerline-to-centerline of concealed wall plates must be within 1/16" (1.6mm) of the rough-in dimension: 23-5/8" (600mm).
- Mounting hardware is included.

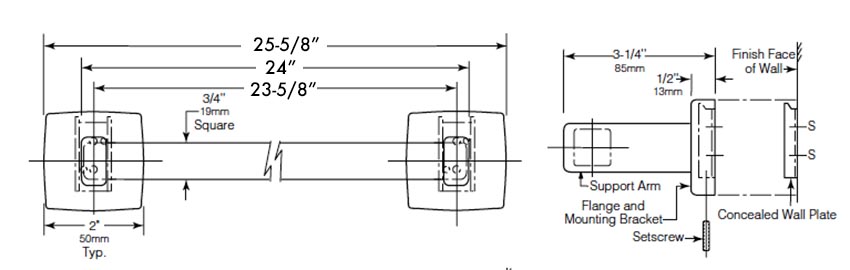

Measurement Diagram:
Architectural Specification:
Surface-mounted towel bar shall be type-304 stainless steel with satin finish. Flanges and support arms shall be 22 gauge (0.8mm) and equipped with concealed, 16‑gauge (1.6mm) mounting brackets that are secured to concealed, 16-gauge (1.6mm) wall plates with locking setscrews. Towel bar shall be 3/4" (19mm) square tubing.
