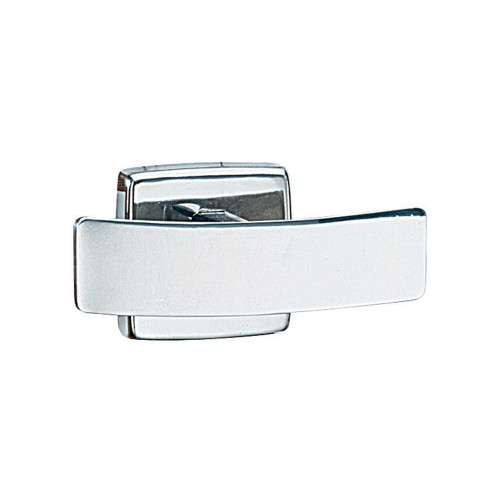

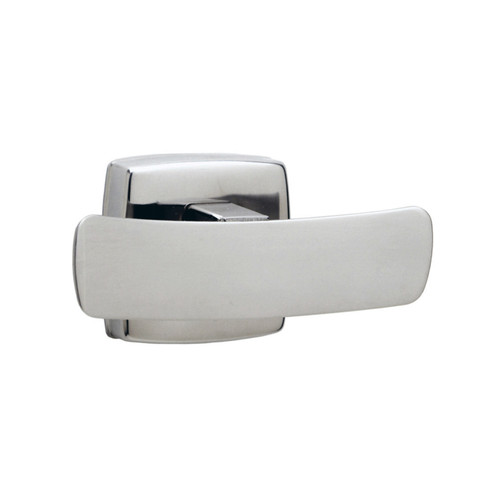

Satin stainless steel. Contoured 4″ (100mm) wide bar forms hook at each end. Flange is 2″ x 2″ (50 x 50mm). Projects 2 - 5/16″ (60mm) from wall.
- 18-8, type-304, 22-gauge (0.8mm) stainless steel. Concealed, 16-gauge (1.6mm) stainless steel mounting bracket. All-welded construction.
- Wall/Surface Mount. Bracket is secured to wall. Hook secured to bracket with set screw.

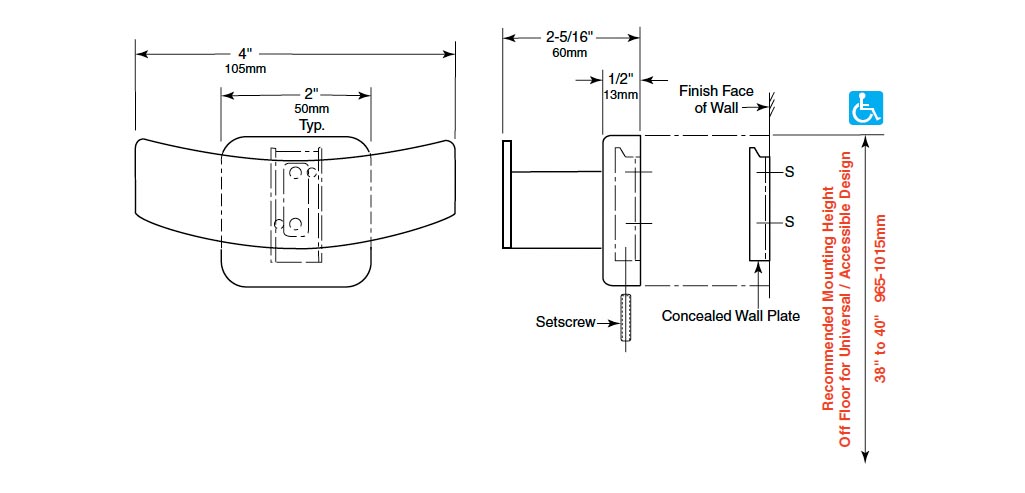

Measurement Diagram:
Architectural Specification:
Surface-mounted double robe hook shall be type-304 stainless steel with satin finish. Flange and support arm shall be 22 gauge (0.8mm) and equipped with a concealed, 16‑gauge (1.6mm) mounting bracket that is secured to a concealed, 16-gauge (1.6mm) wall plate with a stainless steel setscrew. Cap shall be 10 gauge (3.6mm), welded to the support arm.
