Bright-polished stainless steel. For robes, shoe-shine cloth, and sanitary towel disposal bag. Flange is 50 x 50 mm (2" x 2"). Hook 13 mm (1/2") wide, projects 50mm (2") from wall.
- 18-8, type-304, 22-gauge (0.8mm) stainless steel. Concealed, 16-gauge (1.6mm) stainless steel mounting bracket. All-welded construction.
- Wall/Surface Mount. Bracket is secured to wall. Hook secured to bracket with set screw.

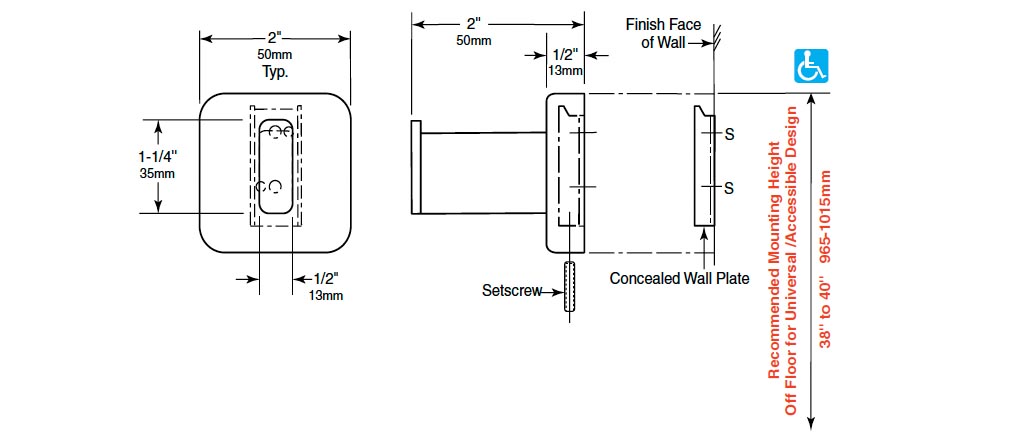

Measurement Diagram:
Architectural Specification:
Surface-mounted utility hook shall be type-304 stainless steel with bright polished finish. Flange and support arm shall be 22 gauge (0.8mm) and equipped with a concealed, 16-gauge (1.6mm) mounting bracket that is secured to a concealed, 16-gauge (1.6mm) wall plate with a stainless steel setscrew. Cap shall be 10 gauge (3.6mm), welded to the support arm.
