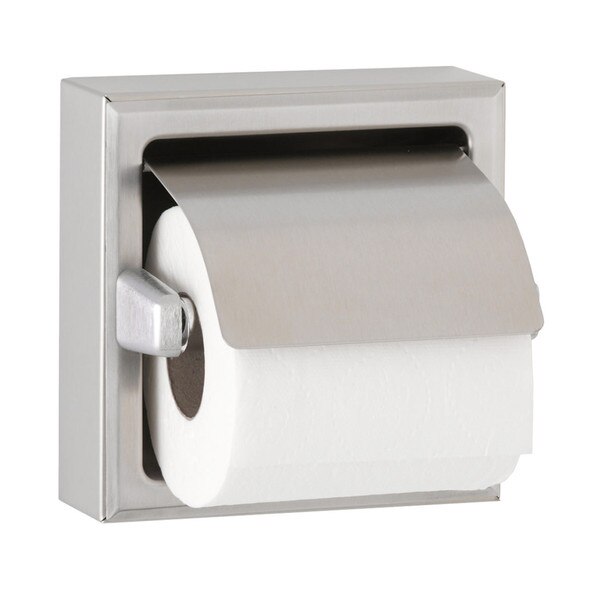

Bobrick B-66997 Surface-Mounted, Satin Stainless Steel, Single-Roll Toilet Paper Dispenser with Hood
Satin finish stainless steel. Hood protects paper. Chrome-plated plastic spindle holds rolls up to 5 - 1/8" (130mm) diameter (1500 sheets). Hood projects 4 - 3/4" (120mm) from wall with full roll in place.

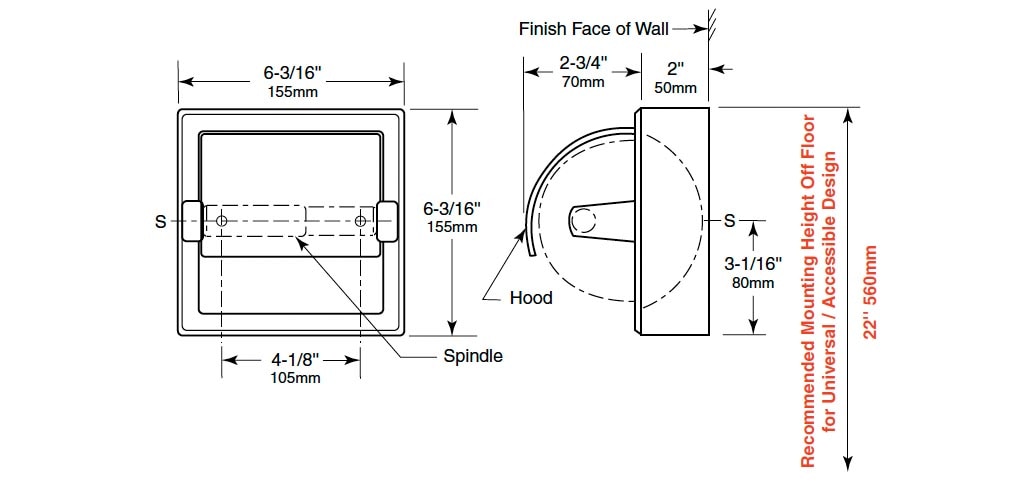

Measurement Diagram:
| Type: | Toilet Paper Dispenser |
| Installation: | Wall / Surface |
| Primary Material: | Stainless Steel |
| Color / Finish: | Satin |
| Capacity: | 1 Standard Core Toilet Paper Roll |
| Overall Dimensions: | 6-3/16" Wide x 6-3/16" Tall x 4-3/4" Deep |
| Net Weight: | 3.2 lbs |
| Shipping Dimensions: | 7" Length x 7" Width x 4.3" Height |
| Shipping Weight: | 3.5 lbs. |
| Manufacturer Model No.: | B-66997 |
| UPC / GTIN: | 716954003898 |
| Country of Manufacture: | Mexico |
| Warranty: | 1 Yr. Manufacturer's Limited |
| Additional Comments: | Sheet metal mounting screws are included. |
Architectural Specifications:
Surface-mounted toilet tissue dispenser shall be Type-304 stainless steel with satin finish. Skirt shall be 22 gauge (0.8mm) with all-welded construction. Shell and flange shall be 22 gauge (0.8mm) and have drawn, one-piece, seamless construction. Unit shall be equipped with 18-gauge (1.2mm) hood hinged to shell. Spindle shall be chrome-plated plastic with a heavy-duty internal spring*.
*Theft-resistant spindle (part No. 283-604) available as a replacement part.
