Satin finish stainless steel. Hood protects paper. Chrome-plated plastic spindle holds rolls up to 5 - 1/8" (130mm) diameter (1500 sheets). Hood projects 4 - 3/4" (120mm) from wall with full roll in place.

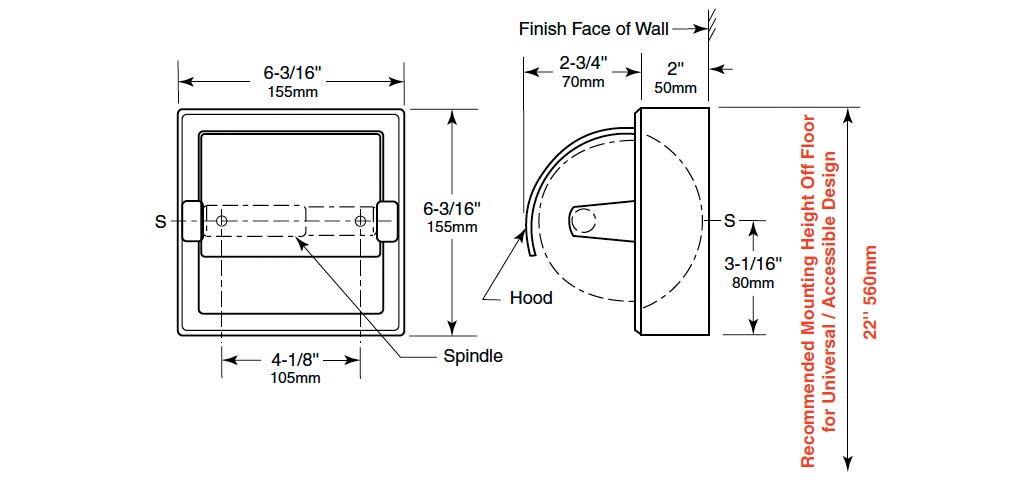

Measurement Diagram:
Architectural Specification:
Surface-mounted toilet tissue dispenser shall be Type-304 stainless steel with satin finish. Skirt shall be 22 gauge (0.8mm) with all-welded construction. Shell and flange shall be 22 gauge (0.8mm) and have drawn, one-piece, seamless construction. Unit shall be equipped with 18-gauge (1.2mm) hood hinged to shell. Spindle shall be chrome-plated plastic with a heavy-duty internal spring*.
*Theft-resistant spindle (part No. 283-604) available as a replacement part.
