Type-304 stainless steel with one-piece seamless construction. Satin finish. Chrome-plated plastic spindles hold rolls up to 5 - 1/8″ (130mm) diameter (1500 sheets). Single-roll model measures 6 - 1/8″ W x 6 - 1/8″ H (155 x 155mm). Mounting clamps for securing to stud walls or countertop aprons. Rough Wall Opening: 5 - 1/2″ W x 5 - 1/4″ H x 3 - 3/8″ mi. Depth (140 x 135 x 85mm). With stainless steel hood.

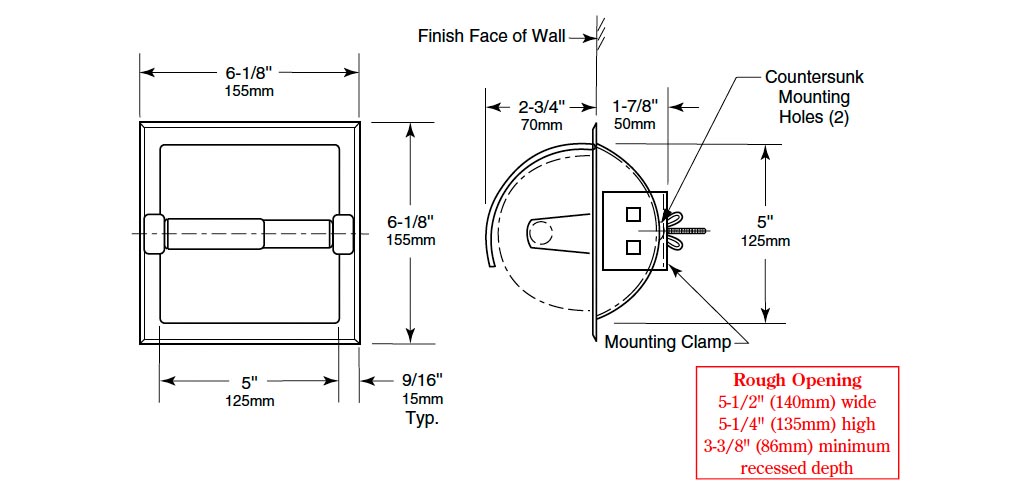

Measurement Diagram:
Architectural Specification:
Recessed toilet tissue dispenser shall be Type-304 stainless steel with satin finish. Shell and fl ange shall be drawn and beveled, one-piece, seamless construction. Unit shall be equipped with 18-gauge (1.2mm) hood hinged to shell and furnished with plated-steel mounting clamp for installation in stud walls or countertop aprons. *Spindle shall be chrome-plated plastic with a heavy-duty internal spring. *To specify theft-resistant spindle as an optional accessory, add to specifi cation: Theft-resistant toilet tissue spindle shall be removable only with special key provided.
