- Sheet metal fasteners supplied.
- For partitions with particle boards or other solid core provide through-bolts, nuts and washers (not supplied). If two units are installed back-to-back, provide threaded sleeves and machine screws for the full thickness of partition (not supplied).
Measurement Diagram:

Architectural Specification:

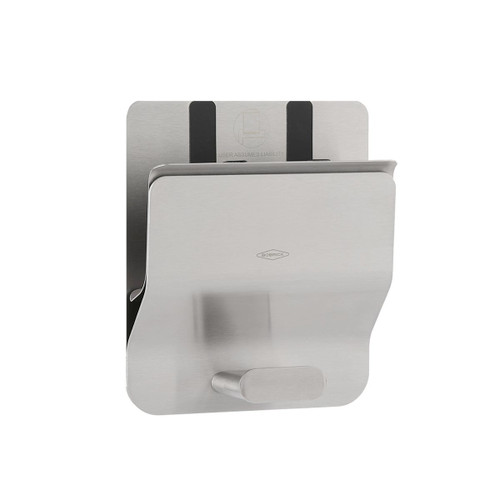

Wall mounted mobile device holder dimensions: 7-1/2" W x 9" H x 2-3/8" D (190 x 229 x 60mm). Wall mounted mobile device holder shall have a type 304 stainless steel front with satin finish. Back plate shall be type 304 stainless steel. Inside holder and hook shall be 304 stainless steel. Back plate shall mount onto wall with stainless steel, sheet metal screws. Front plate including cradle shall be mounted onto back plate and secured in place with threaded tubes. Front hook shall be installed onto threaded tubes and secured with set screws for theft resistance. Glued rubber bands at back plate and cradle prevent the laptop or other devices against unintended slide out of the article.
