Safety Warning: Grab bars are no stronger than the anchors and walls to which they are attached and, therefore, must be firmly secured in order to support the loads for which they are intended.
32mm (1-1/4″) diameter tubing. Constructed of 2mm (18-gauge), type-304, satin-finish stainless steel with slip-resistant surface. Cover snaps over mounting flange to conceal screws.
- 18-8, Type-304, 18-gauge (1.2mm) stainless steel tubing with a satin-finish.
- Bobrick grab bars that provide 1-1/2" (38mm) clearance from wall can support loads in excess of 900 pounds.

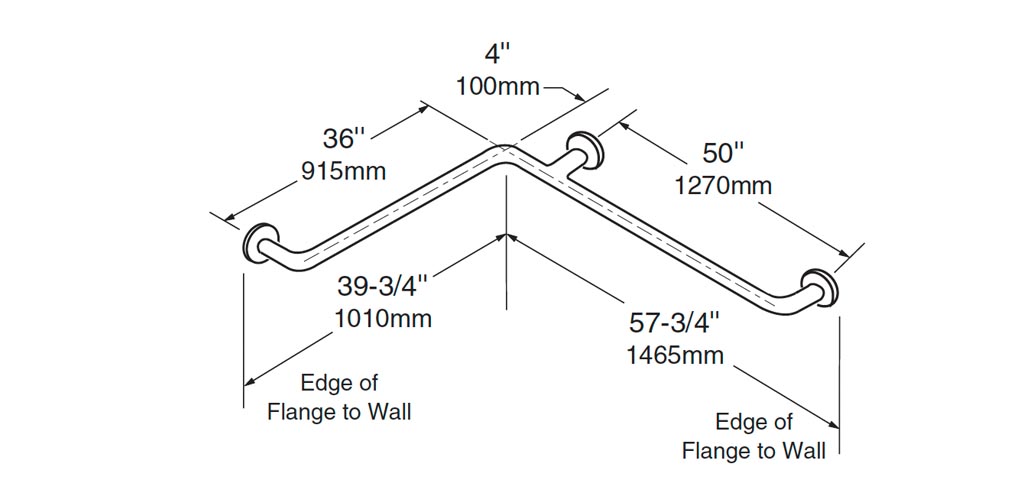

Measurement Diagram:
