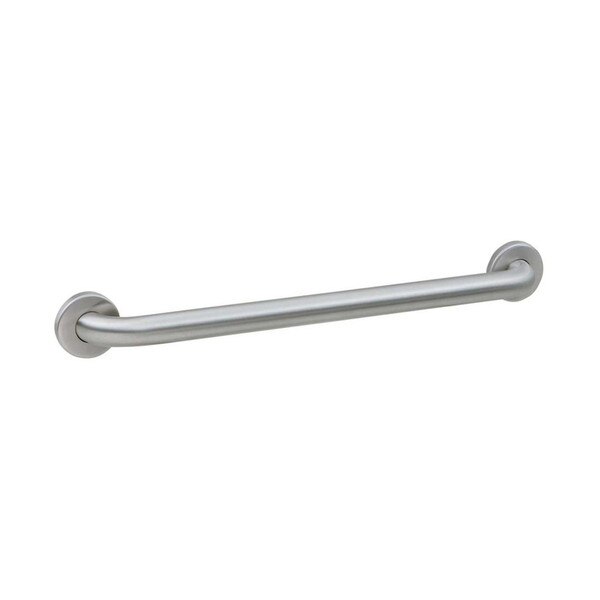

Bobrick B-5806x42 Satin Stainless Steel, Straight, 42" Grab Bar

(0) No Reviews yet
$58.87
SKU: B-5806x42

IN STOCK

24 available for immediate shipment

Safety Warning: Grab bars are no stronger than the anchors and walls to which they are attached and, therefore, must be firmly secured in order to support the loads for which they are intended.

1-1/4″ (32mm) diameter tubing. Rated length of 42". Satin-Finish, slip-resistant surface, stainless steel grab bar for bath/shower/toilet compartment. Snap Flange.

  • 18-8, Type-304, 18-gauge (1.2mm) stainless steel tubing with a satin-finish.
  • Bobrick grab bars that provide 1-1/2" (38mm) clearance from wall can support loads in excess of 900 pounds.

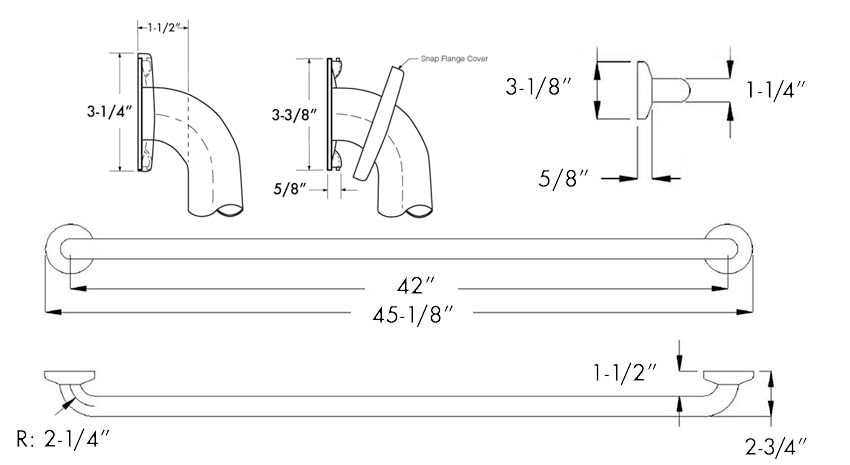

Measurement Diagram:


Type: Straight Grab Bar
Primary Material: Stainless Steel
Mount Type: Concealed (Snap Flange)
Outside Diameter: 1-1/4"
Rated Width: Not Applicable
Rated Length: 42"
Grip Type: Smooth
Finish / Color: Satin
Load Capacity: Up to 600 lbs.
Bariatric: Yes
Antimicrobial: No
Overall Dimensions: 45-1/4" Wide x 3-1/4" Tall x 2-3/4" Deep
Shipping Dimensions: 46" Length x 4" Width x 4" Height
Shipping Weight: 3.4 lbs.
UPC / GTIN: 716954003003
Manufacturer Model No.: B-5806x42
Country of Manufacture: USA
Warranty: 1 Yr. Manufacturer's Limited

Architectural Specifications:

Grab bar shall be Type-304 stainless steel with a satin-finish, slip-resistant surface. Grab bar shall have 18-gauge (1.2mm) wall thickness and 1-1/4" (32mm) outside diameter. Clearance between the grab bar and wall shall be 1-1/2" (38mm). Concealed mounting flanges shall be 11-gauge (3.2 mm) thick stainless steel plate, 2" x 3‑1/8" (50 x 80mm), and equipped with at least two screw holes for attachment to wall. Flange covers shall be 22-gauge (0.8mm) stainless steel, 3-1/4" (85mm) diameter, and shall snap over mounting flanges to conceal mounting screws and/or WingIt fasteners. Ends of grab bar shall pass through concealed mounting flanges and be heliarc welded to form one structural unit. Grab bar shall comply with accessible design (including ADAAG in the U.S.A.) for structural strength.
