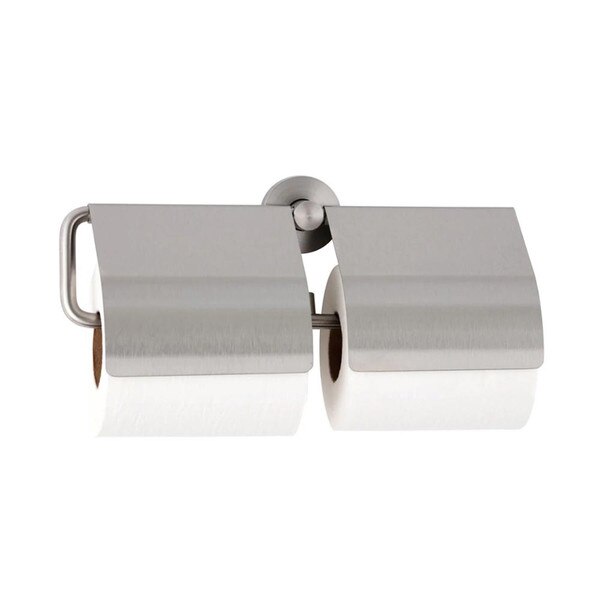

Bobrick B-548 Surface-Mounted, Satin Stainless Steel, Double-Roll Toilet Paper Dispenser with Hoods
Side-by-side 2 roll toilet paper holder with hoods. Modern industrial design. Stainless steel construction. Architectural satin finish.
Accepts standard-core size from 3/4″ (20mm) up to 1 - 1/2″ (40mm) and 4″ (100mm) wide.
Threaded escutcheon conceals mounting plate, provides snug fit to the wall.
Set screw in post prevents vandalism.
By putting light pressure on roll to prevent uncontrolled spinning, hood helps reduce unintended waste.

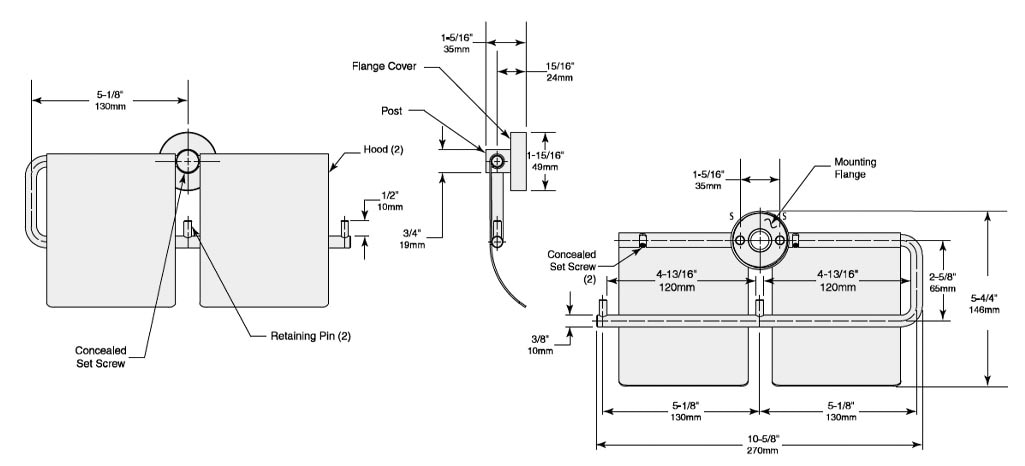

Measurement Diagram:
| Type: | Toilet Paper Dispenser |
| Installation: | Wall / Surface |
| Primary Material: | Stainless Steel |
| Color / Finish: | Satin |
| Capacity: | 2 Standard Core Toilet Paper Rolls |
| Overall Dimensions: | 10-5/8" Wide x 5-3/4" Tall x 1-5/16" Deep |
| Net Weight: | Not Published |
| Shipping Dimensions: | 11" Length x 6" Width x 3" Height |
| Shipping Weight: | 3 lbs. |
| Manufacturer Model No.: | B-548 |
| UPC / GTIN: | Not Published |
| Country of Manufacture: | China |
| Warranty: | 1 Yr. Manufacturer's Limited |
| Additional Comments: | Mounting fasteners not included. |
Architectural Specifications:
Double Toilet Tissue Dispenser with Hoods shall be Type-304 stainless steel with satin finish. Toilet Tissue Dispenser shall have 19mm (3/4") diameter Post. Dispenser bar shall be 9.5mm (3/8") diameter, secured to Post with a concealed set screw allowing for right or left handed assembly. Unit shall be equipped with 18-gauge (1.2mm) hoods secured with set screws. Retaining pin shall be 6.4mm (1/4') diameter and pressed into Dispenser bar. Concealed mounting flange shall be 5.6mm (7/32") thick stainless steel plate, 46mm (1-13/16") outside diameter and equipped with two screw holes for attachment and thread on outside edge to fasten cover. Threaded flange cover shall be 1.4mm (17-gauge) stainless steel, 49mm (1-15/16") diameter and shall fasten over mounting flange to conceal mounting screws. Post and mounting flange are to be machined as one piece.
