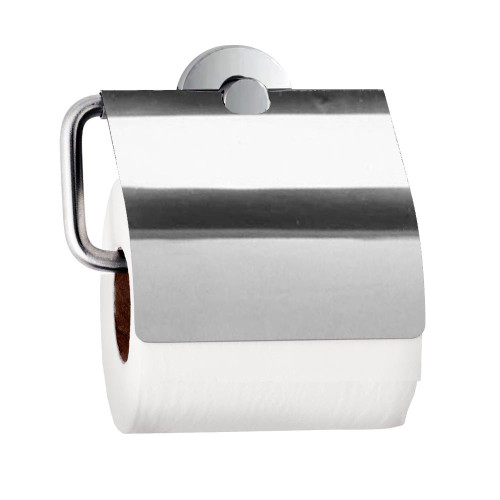

Single roll toilet paper holder with hood. Modern industrial design. Stainless steel construction. Bright (polished) finish.
- Accepts standard-core size from 3/4″ (20mm) up to 1 - 1/2″ (40mm) and 4″ (100mm) wide.
- Threaded escutcheon conceals mounting plate, provides snug fit to the wall.
- Set screw in post prevents vandalism.
- By putting light pressure on roll to prevent uncontrolled spinning, hood helps reduce unintended waste.

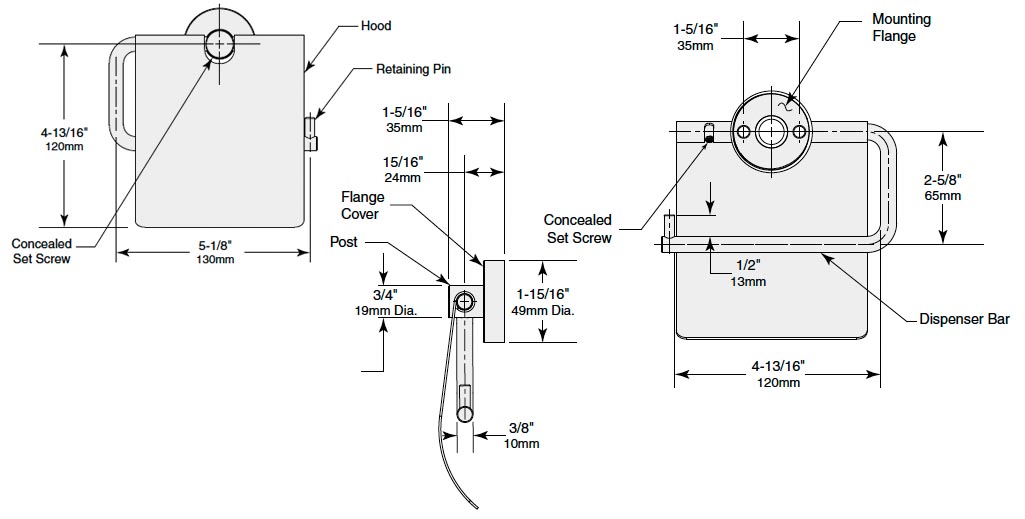

Measurement Diagram:
Architectural Specification:
Toilet Tissue Dispenser with Hood shall be type-304 stainless steel with satin finish. Toilet Tissue Dispenser shall have 19mm (3/4") diameter Post. Dispenser bar shall be 9.5mm (3/8") diameter, secured to Post with a concealed set screw allowing for right or left handed assembly. Unit shall be equipped with 18-gauge (1.2mm) hood secured with set screw. Retaining pin shall be 6.4mm (1/4") diameter and pressed into Dispenser bar. Concealed mounting flange shall be 5.6mm (7/32") thick stainless steel plate, 46mm (1-13/16") outside diameter and equipped with two screw holes for attachment and thread on outside edge to fasten cover. Threaded flange cover shall be 1.4mm (17-gauge) stainless steel, 49mm (1-15/16") diameter and shall fasten over mounting flange to conceal mounting screws. Post and mounting flange are to be machined as one piece.
