Threaded escutcheon conceals mounting plate, provides snug fit to the wall. Rated length of 24″. Projects 3 - 3/4″ from wall.
- Bright (polished) finish.
- 15/32" Rod diameter (approx. 1/2").
- Mounting fasteners not included.

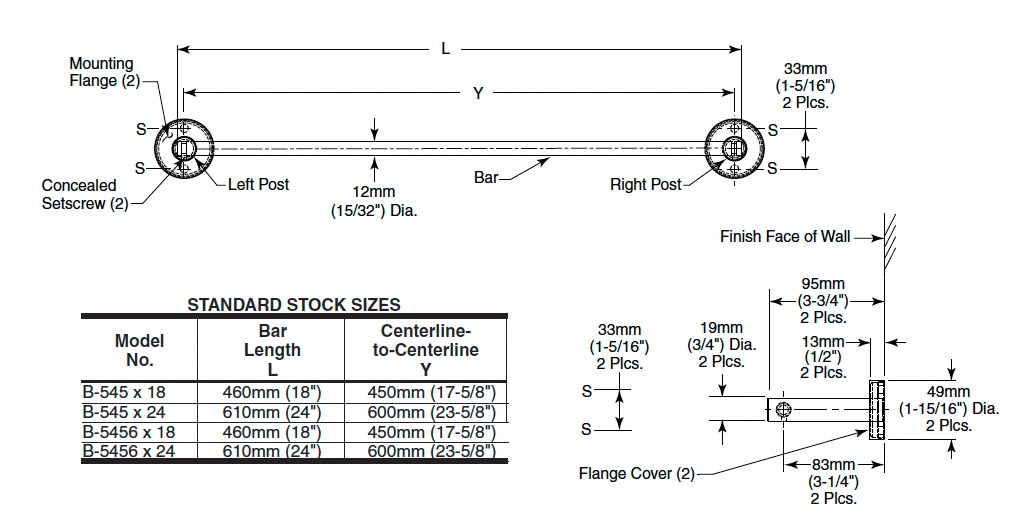

Measurement Diagram:
Architectural Specification:
Towel bar shall be Type-304 stainless steel with bright (polished) finish. Towel bar shall have two (2) 19mm (3/4") diameter posts. Bar shall be 12mm (15/32") diameter secured to post with two (2) concealed set screws. Concealed mounting flange shall be 6mm (7/32") thick stainless steel plate, 46mm (1-13/16") outside diameter and equipped with two screw holes for attachment and thread on outside edge to fasten cover. Threaded flange cover shall be 1mm (17-gauge) stainless steel, 49mm (1-15/16") diameter and shall fasten over mounting flange to conceal mounting screws. Post and mounting flange are to be machined as one piece.
