Bobrick B-5426 Surface-Mounted, Polished Stainless Steel Coat Hook

SKU: B-5426
(No reviews yet) Write a Review
$30.53
Adding to cart… The item has been added
Availability:
Ships in 3 business days from manufacturer.
Elegant modern design coat hook. Hook is 1/2″ (13mm) high. Projects 1 - 5/16″ (35mm). Threaded escutcheon conceals mounting plage.
  • Architectural satin finish.
  • Mounting fasteners are NOT included.

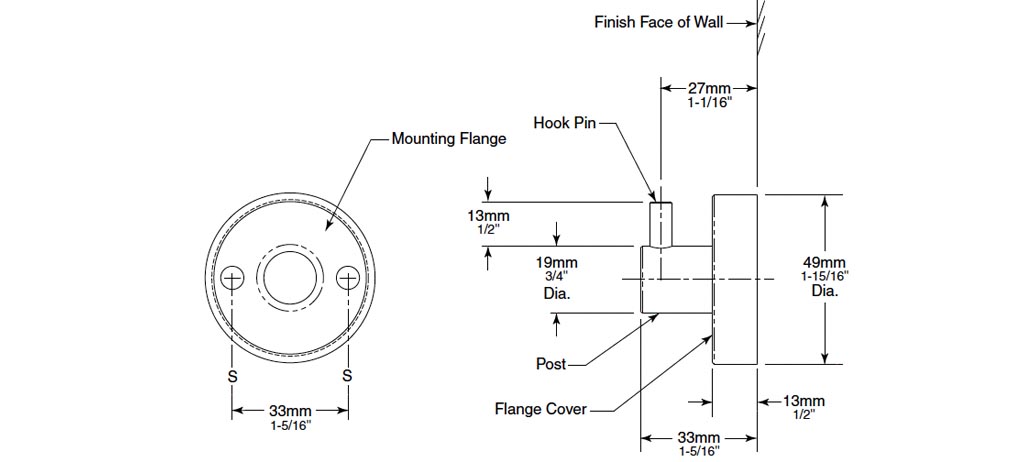

Measurement Diagram:

Measurements for Bobrick B-5426 Robe Hook
Architectural Specification:

Coat Hook shall be type-304 stainless steel with ________________ (insert one satin finish or bright polished) finish. Coat Hook shall have 19mm (3/4") diameter Post with 6.4mm (1/4") diameter Hook Pin. Concealed mounting flange shall be 5.6mm(7/32") thick stainless steel plate, 46mm (1-13/16") outside diameter and equipped with two screw holes for attachment and thread on outside edge to fasten cover. Threaded flange cover shall be 1.4mm (17-gauge) stainless steel, 49mm (1-15/16")diameter and shall fasten over mounting flange to conceal mounting screws. Post and mounting flange are to be machined as one piece.
