Threaded escutcheon conceals mounting plate, provides snug fit to the wall. Escutcheon diameter 1-15⁄16″ (50mm) diameter. Hook is 1⁄2″ (13mm) high. Projects 1-5⁄16″ (35mm).
- Type-304 stainless steel with satin finish
- 19mm (3/4") diameter Post with 6.4mm (1/4") diameter Hook Pin
- Concealed mounting flange 5.6mm (7/32") thick stainless steel plate, 46mm (1-13/16") outside diameter
- Threaded flange cover 1.4mm (17-gauge) stainless steel, 49mm (1-15/16") diameter
- Surface Mount

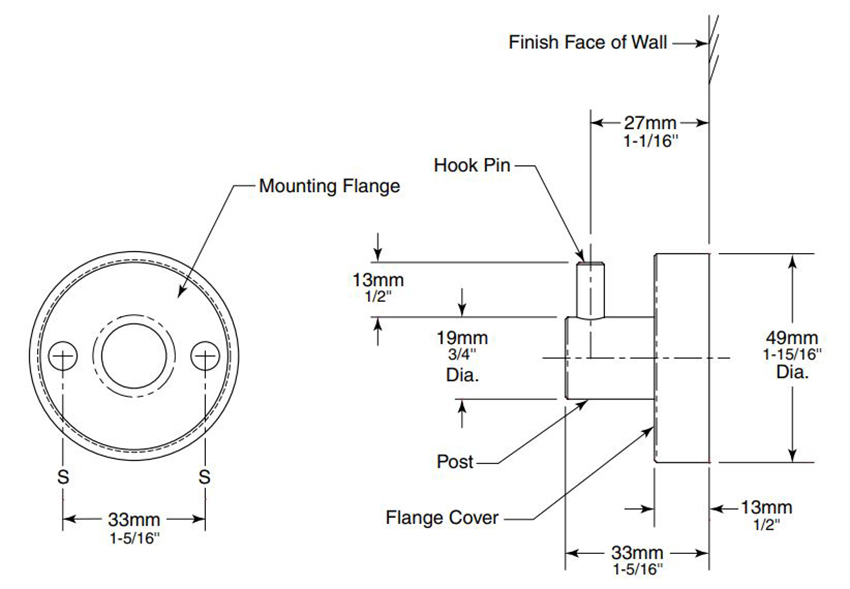

Measurement Diagram:
