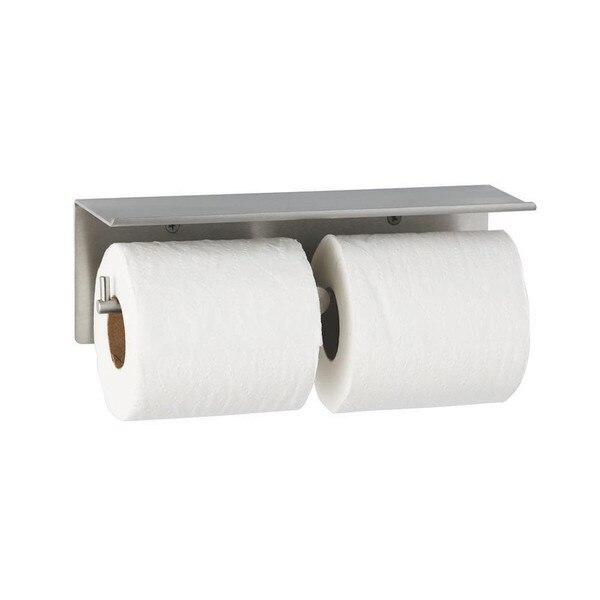

Bobrick B-540 Surface-Mounted, Satin Stainless Steel, Dual-Roll Toilet Paper Dispenser & Utility Shelf
 | Toilet paper is not included |
Type-304, 14-gauge stainless steel with satin finish. Shelf has 1/4″ (6mm) upward return front edge. Toilet paper dispenser has 3/4″ (19mm) diameter post. Dispenser bar is 3/8″ (9.5mm) diameter, secured to post with a concealed set screw. Retaining pin is 1/4″ (6.4mm) diameter and pressed into dispenser bar.
Wall plate is equipped with two screw holes for attachment. Post and wall plate are securely welded as one piece. Dispenser bar holds standard-core toilet paper rolls up to 4 - 1/2″ (110mm) diameter (500 sheets).
- Holds two standard-core toilet tissue rolls up to 4-1/4" (110mm) diameter (500 sheets).
- Mounting fasteners are NOT included.
Measurement Diagram:
| Primary Material: | Stainless Steel |
| Color/Finish: | Satin |
| Installation Type: | Wall / Surface |
| Capacity: | 2 Standard Core Toilet Paper Rolls |
| Overall Dimensions: | 11" Wide x 3 - 3/4" Tall x 3 - 3/4" Deep |
| Net Weight: | Not Published |
| Shipping Dimensions: | 12" Length x 4" Width x 4" Height |
| Shipping Weight: | 1 lbs. |
| Manufacturer Model No.: | B-540 |
| UPC / GTIN: | Not Published |
| Country of Manufacture: | Not Published |
| Warranty: | 1 Yr. Manufacturer's Limited |
Architectural Specifications:
Surface-mounted toilet tissue dispenser and utility shelf shall be Type-304, 14 gauge stainless steel with satin finish. Shelf shall have 1/4" (6mm) upward return front edge. Toilet Tissue Dispenser shall have 3/4" (19mm) diameter Post. Dispenser bar shall be3/8" (9.5mm) diameter, secured to Post with a concealed set screw. Retaining pin shall be 1/4" (6.4mm) diameter and pressed into Dispenser bar. Wall Plate equipped with two screw holes for attachment. Post and Wall Plate are to be securely welded as one piece. Dispenser Bar shall hold standard-core toilet tissue rolls up to 4-1/4" (110mm) diameter (500 sheets).
