Bobrick B-532 TrimLineSeries™ Deck Mount (Countertop Pass Through), Satin Stainless Steel, Circular Waste Chute

SKU: B-532
(No reviews yet) Write a Review
$118.95
Adding to cart… The item has been added
Availability:
Ships in 3 business days from manufacturer.
Satin-finish stainless steel. Flat flange suitable for counter, recessed or under-counter installation. Provides convenient direct access to under-counter waste receptacle (not included).
  • Product is designed for installation in 6-1/8" ± 1/16" (155 ± 1.5mm) diameter hole in any countertop.
  • Type-300, 22-gauge (0.8mm) stainless steel.

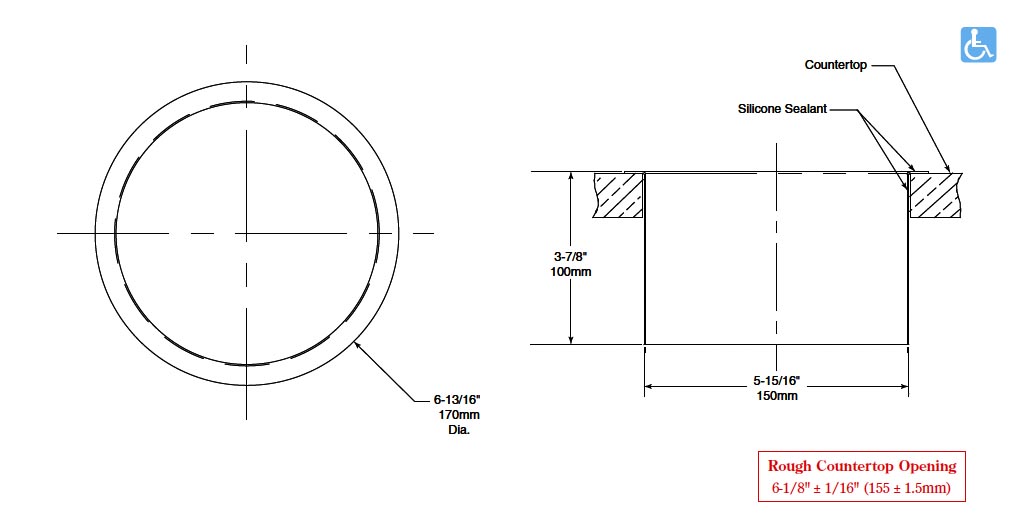

Measurement Diagram:

Measurements for Bobrick B-532 Recessed Waste Chute Pass Thru
Architectural Specification:

Circular waste chute for mounting in countertops shall be type-300 stainless steel with 5-7/8" (150mm) inside diameter, flat lip and satin finish on exposed surfaces. Waste chute opening shall provide access to deposit waste into waste receptacle(not furnished) placed under the countertop.
