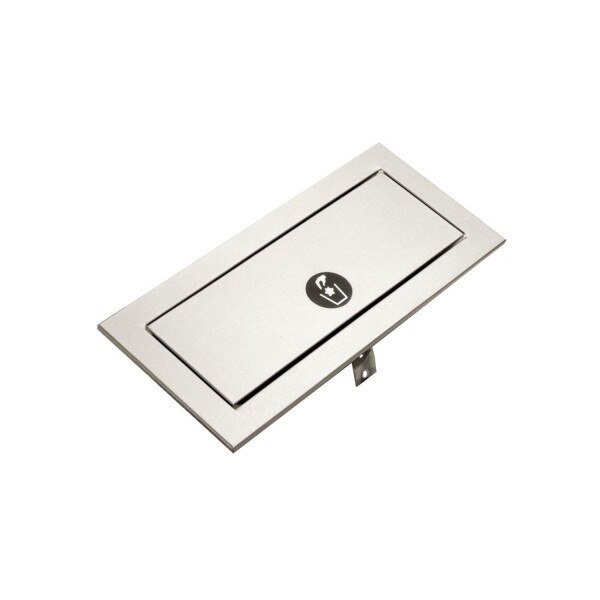

The Bobrick B-527 Waste-Disposal Door for countertop mounting is for use with counters 3/4" to 1-1/2” thick with 4-1/2” of clearance providing users with a sanitary and convenient way to dispose of waste. This space-saving alternative to a trash can is great for elderly residents or those who may have trouble walking. Because it's built right into the counter, users can simply wash their hands, use a paper towel, and drop it through the door without added walking or movement to locate a separate receptacle. Type-304 stainless steel with a satin-finish. Door is self-closing. Flange has 90° return. Waste bin and housing below counter to conceal bin are not included. The door has a spring loaded, stainless steel piano hinge that runs the full length of the unit allowing for convenient self-closing.
- Unit is designed for installation in countertop. 4-1/2" (114mm) minimum clearance below mounting surface is required
- Mounts in counters 3/4″ to 1-1/2″ (19 to 38mm) thick.
- Waste receptacle is not included with unit. Housing below countertop to conceal waste receptacle is not included with the unit

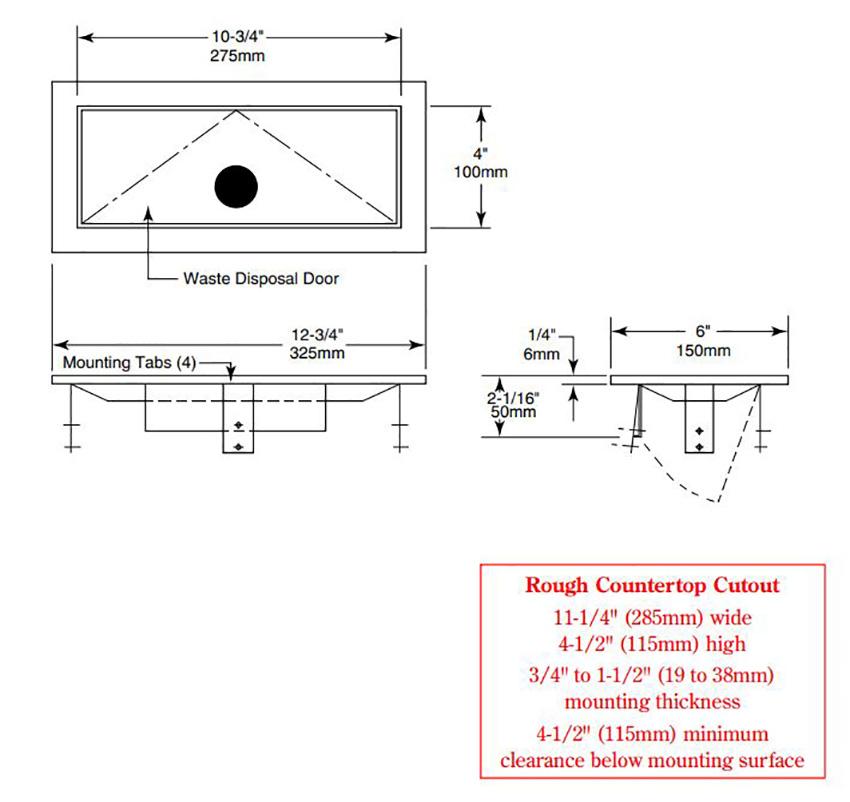

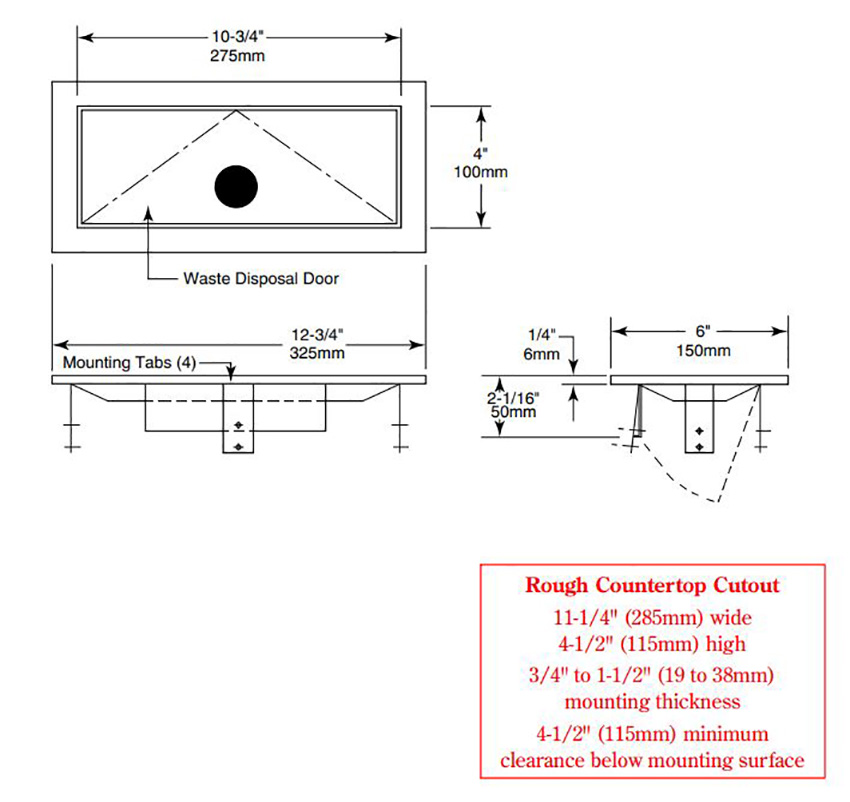

Measurement Diagram:
