The Bobrick B-526 countertop mounted paper towel dispenser is constructed of Type-304 stainless steel with a satin-finish. Flange has 90° return.
Towels load into top of dispenser. Dispenses 300 C-fold or multifold towels. Unit 12 -3/4" W, 6" front to back depth (325 x 150mm); 17" (430mm) min. clearance below mounting surface is required.
Rough Countertop Cutout: 12 -1/4" W (310mm), 4 -1/2" front to back depth (115mm), -3/4" to 1 -1/2" (19 to 38mm) mounting thickness.
Patented push‑through design allows loading from the top by pushing towels downward into dispenser through the two hinged towel retainers
Housing below countertop to conceal dispenser is not included.
- Paper towel dispenser accommodates C-fold and multifold paper towels without adjustment or adapters

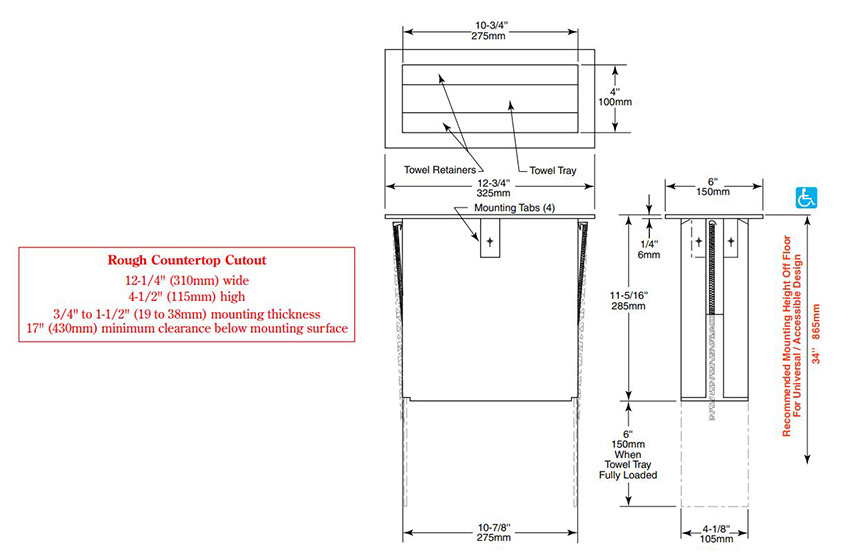

Measurement Diagram:
