Compact design. Seat is constructed of durable, water-resistant, ivory-colored, 5/16″ (8mm) thick solid phenolic. Frame and mounting bracket are type-304 stainless steel and features self-locking mechanism. Supports up to 500 lbs (227 kg) when properly installed. Seat is 22″ (560mm) wide, projects 15 - 13/16″ (400mm) from wall.
SAFETY WARNING: Shower seats are no stronger than the anchors and walls to which they are attached and must be firmly secured in order to support the loads for which they are intended. Consult and comply with local building codes. To avoid potential injury, the building owner or maintenance personnel should remove the shower seat from service if the shower seat is not adequately secured to the wall. In the interests of safety and the protection of end users, this seat should not be used to support weights exceeding 500lbs (227 kg). To avoid potential seat malfunction, DO NOT use seat if weight exceeds 500 lbs (227 kg). Failure to abide by this warning may result in seat malfunctioning, potentially causing minor to moderate injury.
SAFETY WARNING: Shower seats are no stronger than the anchors and walls to which they are attached and must be firmly secured in order to support the loads for which they are intended. Consult and comply with local building codes. To avoid potential injury, the building owner or maintenance personnel should remove the shower seat from service if the shower seat is not adequately secured to the wall. In the interests of safety and the protection of end users, this seat should not be used to support weights exceeding 500lbs (227 kg). To avoid potential seat malfunction, DO NOT use seat if weight exceeds 500 lbs (227 kg). Failure to abide by this warning may result in seat malfunctioning, potentially causing minor to moderate injury.
- Shower seat can be folded up against the wall when not in use.
- Durable one-piece, 5/16" (8mm) thick, solidly fused plastic laminate with matte-finish melamine surfaces. Ivory-colored face sheets, and black phenolic-resin core that are integrally bonded — cannot delaminate.
Integral slots for water drainage. - 18-8, Type-304, stainless steel with satin finish. 16-gauge (1.6mm), 1-1/4" (30mm) square tubing and 18‑gauge (1.2mm), 1" (25mm) diameter seamless tubing.
- Complies with accessible design (including ADAAG in the U.S.A.) for structural strength.

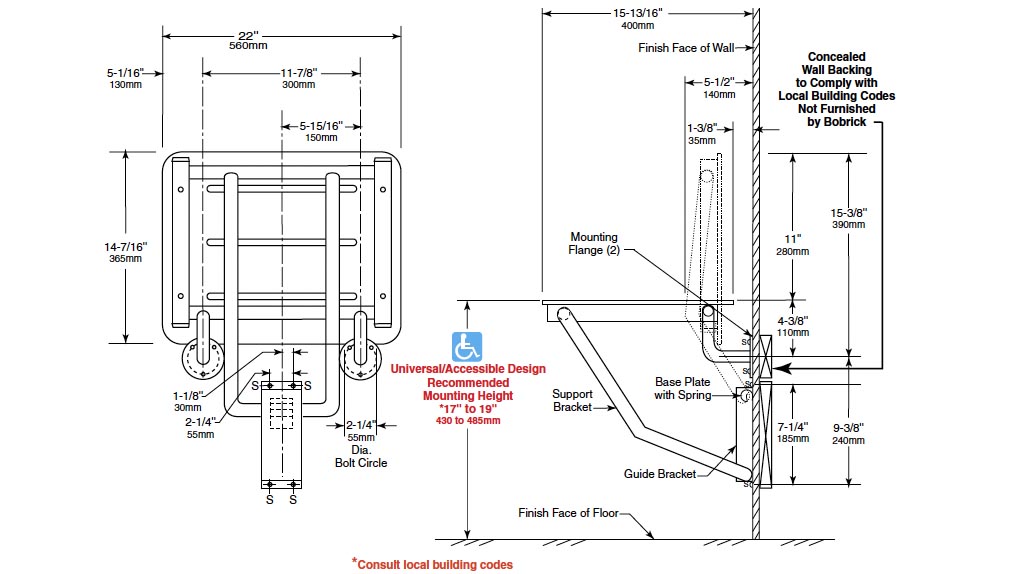

Measurement Diagram:
Architectural Specification:
Folding shower seat shall have a frame constructed of Type-304, satin-finish stainless steel that consists of 16-gauge (1.6mm),1-1/4'' (30mm) square tubing and 18-gauge (1.2mm), 1'' (25mm) diameter seamless tubing. Seat shall be one‑piece, 5/16"(8mm) thick, solidly fused plastic laminate with matte-finish melamine surfaces, ivory-colored face sheets, and black phenolic resin core; secured to frame with stainless steel carriage bolts and acorn nuts. Shower seat shall be equipped with two 3''(75mm) diameter mounting flanges constructed of Type-304, 3/16'' (5mm) thick, satin-finish stainless steel; a guide bracket constructed of Type-304, 16-gauge (1.6mm), satin-finish stainless steel; and a spring constructed of Type-301, 24-gauge (0.6mm)stainless steel that is spot-welded to a baseplate of Type-304, heavy-gauge stainless steel. Seat shall be able to lock in upright position when not in use. Shower seat shall comply with accessible design guidelines (including ADAAG in the U.S.A.).
