Seating area is 15" (336mm) wide by 28" (711mm) in length to rest on end of bathtub.
- Requires one hand operation to manually lower to horizontal position for use or to raise for departure and arrival.
- Flanges hold Seat in upright position until released by pulling the top of the Seat away from the wall.
- Complies with accessible design guidelines (including ADAAG in the U.S.A.).

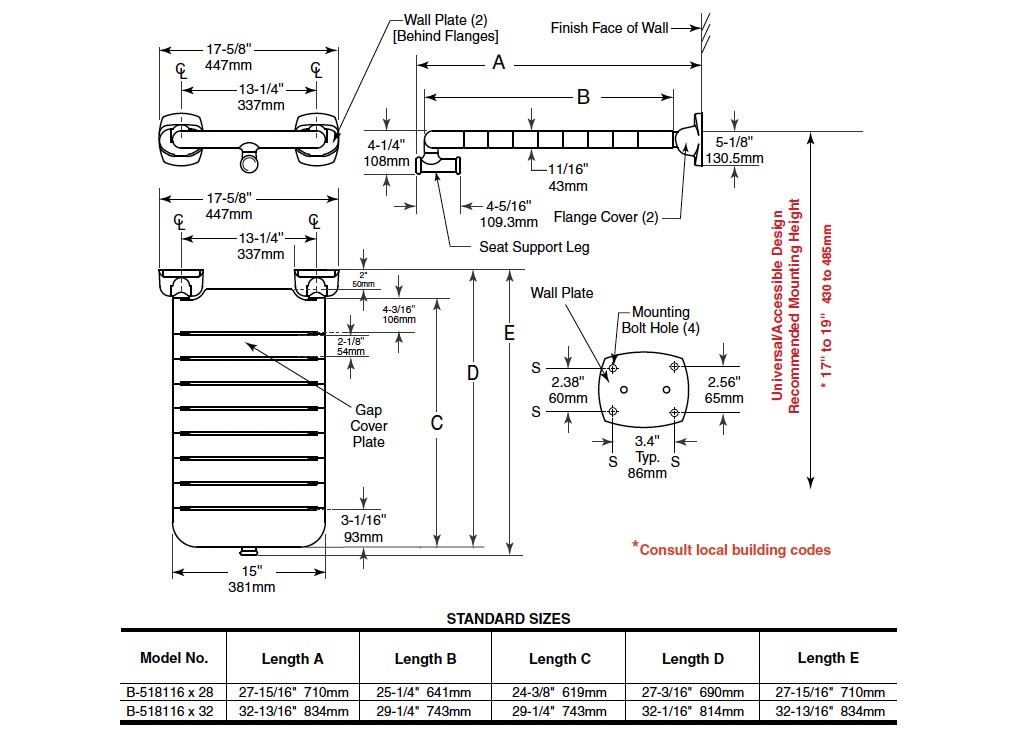

Measurement Diagram:

Architectural Specification:
Vinyl-coated Folding Bathtub Seat shall have a frame constructed of zinc-plated 3/4" steel pipe 1/10" (2.5mm) wall thickness, 1/8" (3mm) white vinyl antibacterial, biocompatible, and warm-to-the-touch coating thickness, 1-5/16" (33mm)outside diameter. Seat shall be 15" (380 mm) wide, polyamide 6 with glossy finish slats on top and bottom surfaces. Bathtub Seat shall be equipped with two Mounting Flanges constructed of stainless steel Inox Type 304, 1/8" (3mm) thick wall plate with four mounting bolt locations for 3" (75mm) long 5/16" hex-head lag bolts and polyamide 6 flange cover. Seat shall remain in upright position when not in use. Bathtub Seat shall comply with accessible design guidelines (including ADAAG in the U.S.A..).
