- 18-8, Type-304, 18-gauge (1.2mm) stainless steel tubing with satin finish. 1–1/4" (32mm) outside diameter. Ends are heliarc welded to fl anges.
- Mounting fasteners are NOT included.

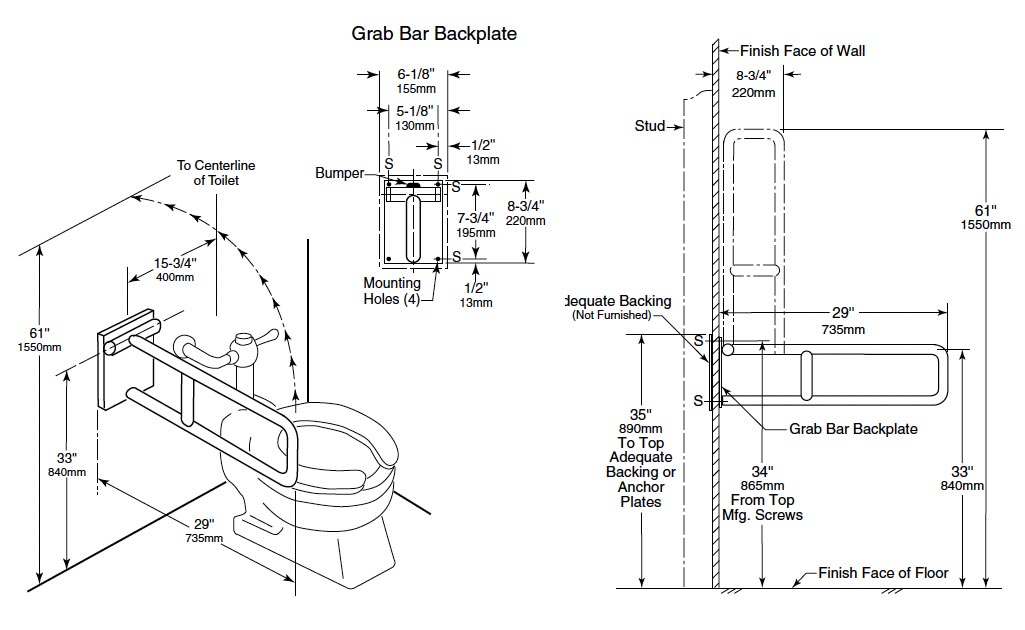

Measurement Diagram:

Architectural Specification:
Grab bar shall be Type-304 stainless steel with satin finish. Grab bar shall have 18-gauge (1.2mm) wall thickness and 1–1/4" (32mm) outside diameter. Backplate shall be 3/16" (5mm) thick stainless steel, equipped with screw holes for attachment to wall. Swing-up grab bar shall be manually raised for approach or departure and lowered to horizontal position for support; counterweighted design shall prevent grab bar from falling back down to the full horizontal position once grab bar is raised to the full upright (vertical) position.
