Safety Warning: Grab bars are no stronger than the anchors and walls to which they are attached and, therefore, must be firmly secured in order to support the loads for which they are intended.
- Swing-up grab bar withstands loads 330 pounds (150kg) if properly installed, complying with accessible design guidelines (including ADAAG in the U.S.A.) for structural strength.
- 2-1/2" (65mm) long #10 Phillips sheet metal mounting screws furnished.

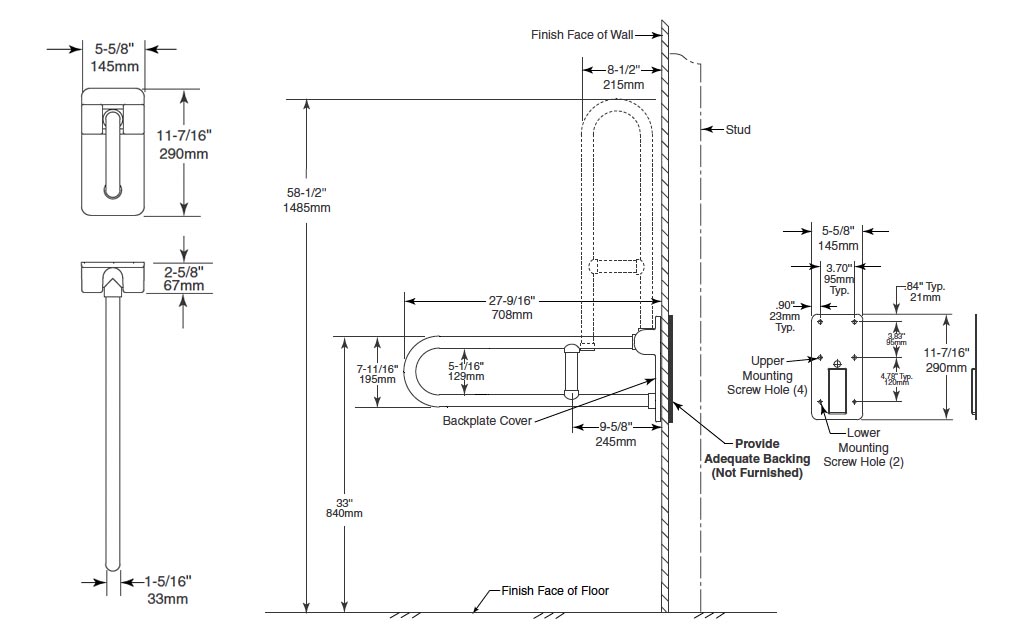

Measurement Diagram:
Architectural Specification:
Vinyl-Coated Swing-Up Grab Bar with reinforced joint shall be corrosion resistant, zinc coated steel pipe with vinyl antibacterial, biocompatible and warm-to-the touch coating. Grab bar shall have 1/8" (3mm) wall thickness, 1/8"(3mm) extruded plastic finish coating thickness and 1-5/16" (33mm) outside diameter. Back plate shall be 3/16" (4mm) thick AISI 304 stainless steel, equipped with screw holes for attachment to wall. Swing-up grab bar shall be manually raised for approach or departure and lowered to horizontal position for support; grab bar is raised to upright position against wall and remains in vertical position until lowered to horizontal position.
