Unit equipped with TowelMate and LinerMate. Radius on corners and edges of flange, door, and waste receptacle shall complement other Bobrick ConturaSeries washroom accessories.
Satin-finish stainless steel. Flush tumbler lock. Dispenses 600 C-fold or 800 multifold towels. Waste receptacle has 15.0-gal. (56.8-L) capacity; extends 5-1/8″ (130mm) from wall.
Removable front panel for easy cleaning. Rough Wall Opening: 16″ W, 54-3/4″ H, 4″ min. depth (405 x 1390 x 100mm).
- 18-8, type-304, 22-gauge (0.8mm) stainless steel
- Paper Towel Dispenser Capacity: 600 C-fold or 800 multifold paper towels
- Waste Receptacle Capacity: 15.0-gal. (56.8-L)

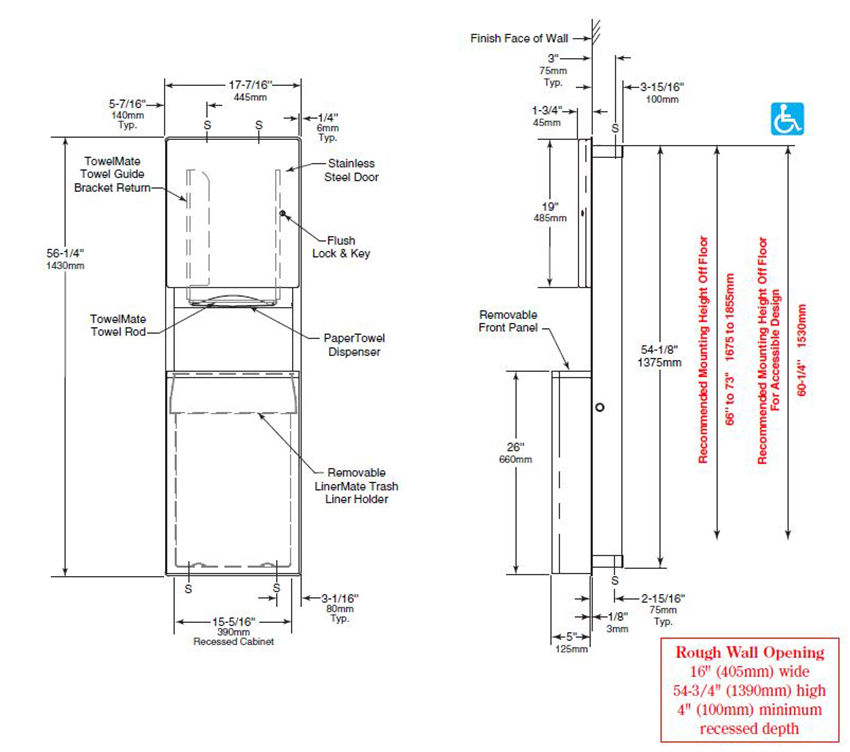

Measurement Diagram:
