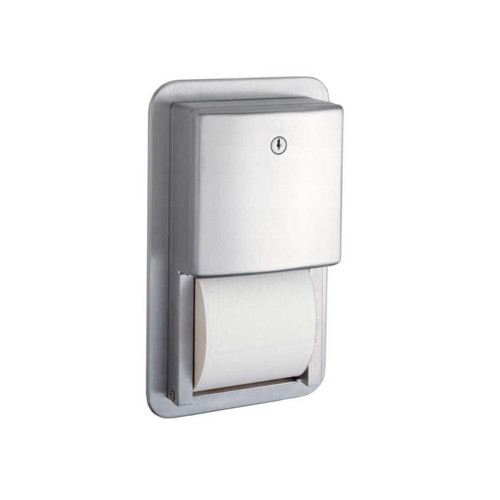

Satin-finish stainless steel unit and dispensing mechanism. Flush tumbler lock. Holds two rolls up to 5 1/4" (133mm) diameter (1800 sheets). Extra roll drops in place when bottom roll is depleted. Theft-resistant, heavy-duty spindles. Extends 2 3/4" (70mm) from wall. Rough Wall Opening: 6 1/4" W, 11 1/4" H, 3 1/4" min. depth (160 x 285 x 85mm).
- 18-8, type-304, 22-gauge (0.8mm) stainless steel
- Spindles (2) — Heavy-duty, one-piece, molded ABS. Theft-resistant, spindles retained in dispensing mechanism when door is locked
- Dispense two standard-core toilet tissue rolls up to 5-1/4" (133mm) diameter (1800 sheets)

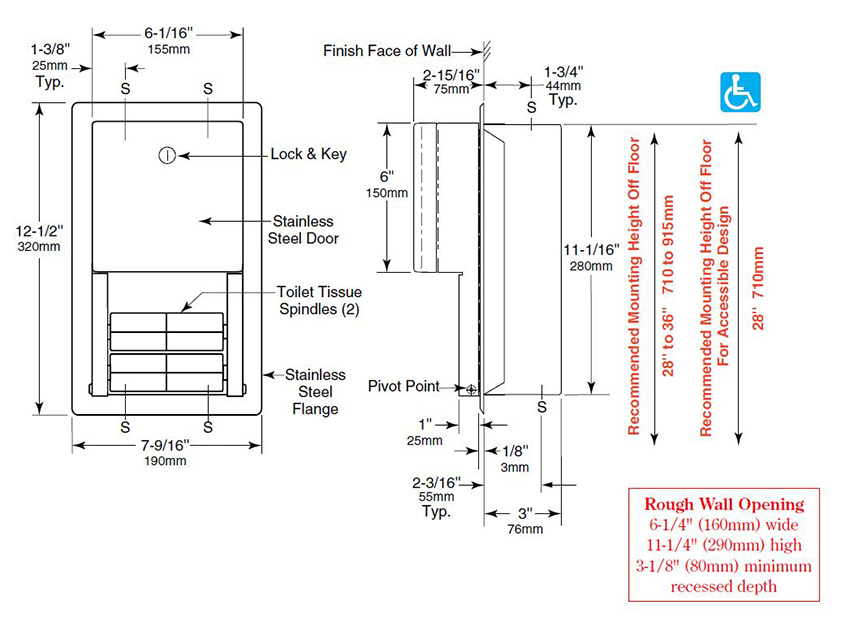

Measurement Diagram:
