Satin-finish stainless steel. Mounts in toilet partition 13mm to 32mm (1/2" to 1 - 1/4″) thick. Self-closing doors pull down with less than 2.2 kg (5 lbs) of force (22.2 N) for access to disposal. Removable, leak-proof, 2.7-L (0.7-gal.) plastic bin. Rough partition opening: 280mm W x 240mm H (11" x 9 - 3/8″).
- Doors are drawn, one-piece, seamless construction.
- Leak-proof molded polyethylene receptacle. Removable from either side for servicing.
- Serves two toilet compartments. Self-closing doors pull down for access to disposal with less than 5 pounds of force (22.2 N) to comply with barrier-free accessibility guidelines (including ADAAG in U.S.A.).
- Front of sanitary napkin disposal doors have same degree of arc and match other Bobrick ConturaSeries accessories in the washroom.

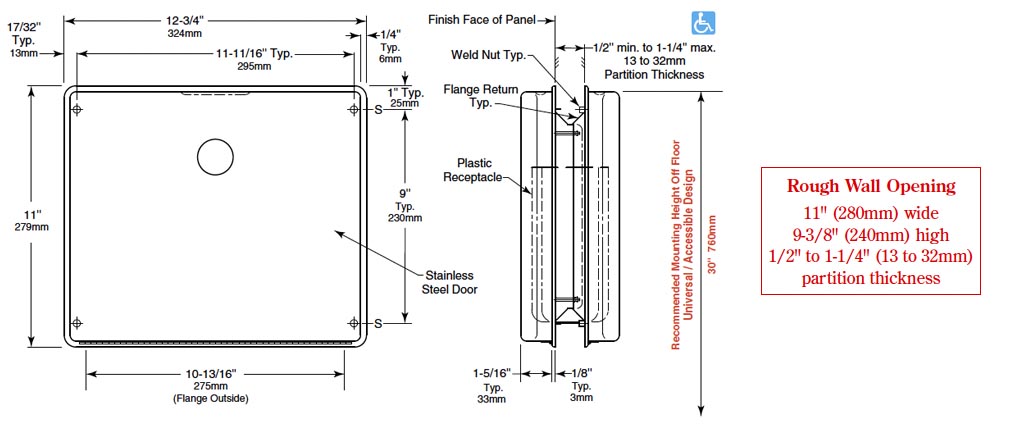

Measurement Diagram:
