Unit includes convertible universal, roll paper towel module and 18-gallon (68.1-L) waste receptacle. Satin-finish stainless steel. Seamless beveled flange. The “touch-free” pull-towel mechanism dispenses 12″ (305mm) length per pull of universal roll paper towels. Accommodates 8″ (205mm) wide, up to 8″ (205mm) diameter rolls, 800 ft (244m) long, plus 3 - 1/2″ (90mm) diameter stub roll with automatic transfer. Removable waste receptacle is locked into the cabinet. Rough wall opening: 16″ W x 54 - 3/4″ H x 4″ minimum depth (405 x 1390 x 100mm). Field conversion is made easy without replacing existing cabinets in wall.
Interchangeable with:
367-60: Interchangeable receptacle, 12-gallon (45.5-L)
3974-250: Convertible automatic, universal roll paper towel dispenser module equipped with LED light
3944-52: Folded paper towel dispenser module
Interchangeable with:
367-60: Interchangeable receptacle, 12-gallon (45.5-L)
3974-250: Convertible automatic, universal roll paper towel dispenser module equipped with LED light
3944-52: Folded paper towel dispenser module
- 18-8, Type 304, heavy-gauge stainless steel. Welded construction.
- Touch-Free roll towel dispensing mechanism one 12" (300mm) length of paper towel per pull and operates smoothly and quietly.
- Automatic transfer dispenses stub roll before new roll is dispensed. When stub roll is depleted, advancement of paper towel feed wheel allows the main roll to start dispensing without the need to open the dispenser.
- Removable waste receptacle is secured to cabinet with a tumbler lock, and has front and side edges of bottom and all top edges hemmed for safe handling.
- Door secured to cabinet with a full-length stainless steel piano-hinge and equipped with a tumbler lock keyed like other Bobrick washroom accessories.

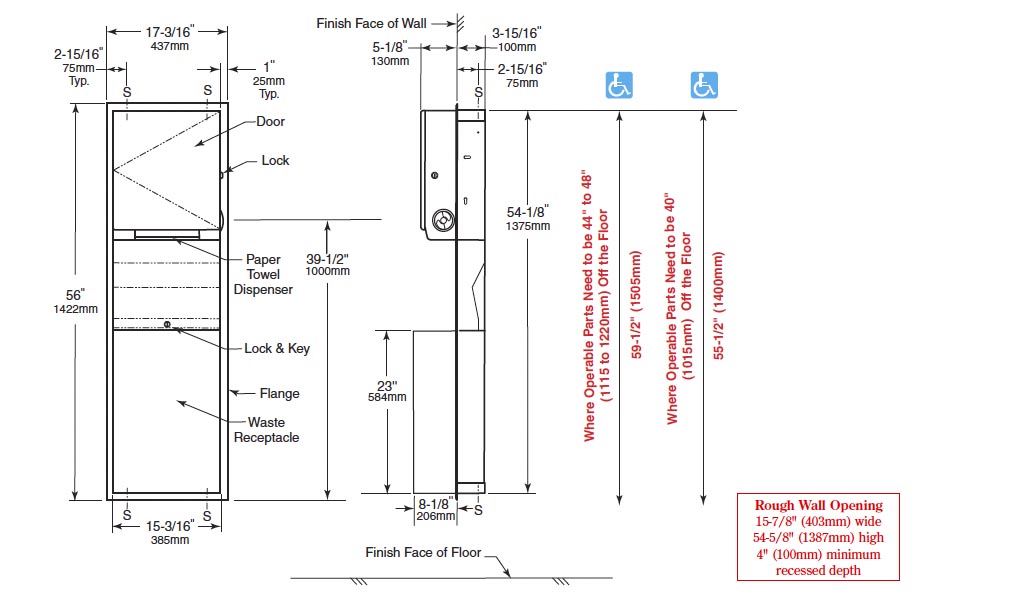

Measurement Diagram:
