Dispenser includes convertible universal, roll paper towel module and 12-gallon waste receptacle. Satin-finish stainless steel. Seamless beveled flange. The “touch-free” pull-towel mechanism dispenses 12″ (305mm) length per pull of universal roll paper towels.
Accommodates 8″ (205mm) wide, up to 8″ (205mm) diameter rolls, 800 ft (243.8m) long, plus 3 - 1/2″ (90mm) diameter stub roll with automatic transfer. Receptacle is 8″ (205mm) deep with a capacity of 12-gallons (45.5-L). Extends 4 - 1/8″ (105mm) from the wall. Rough Wall Opening: 15 - 7/8″ W x 54 - 5/8″ H x 4″ minimum depth (403 x 1087 x 100mm).
Field conversion is made easy without replacing existing cabinets in the wall. Interchangeable with:
366-60: Interchangeable receptacle, 6-gallons (22.7-L)
368-60: Interchangeable receptacle, 18-gallons (68-L).
3974-250: Convertible, automatic, universal, roll paper towel dispenser module equipped with LED light.
3944-52: Folded towel dispenser module.
- 18-8, Type 304, heavy-gauge stainless steel. Welded construction. Exposed surfaces have satin-finish.
- Door secured to cabinet with a full-length stainless steel piano-hinge and equipped with a tumbler lock keyed like other Bobrick washroom accessories.
- Touch-Free roll towel dispensing mechanism one 12" (300mm) length of paper towel per pull.
- Automatic transfer dispenses stub roll up to 3-1/2" (90mm) diameter before new roll is dispensed.
- Removable waste receptacle secured to cabinet with a tumbler lock and has front and side edges of bottom and all top edges hemmed for safe handling.

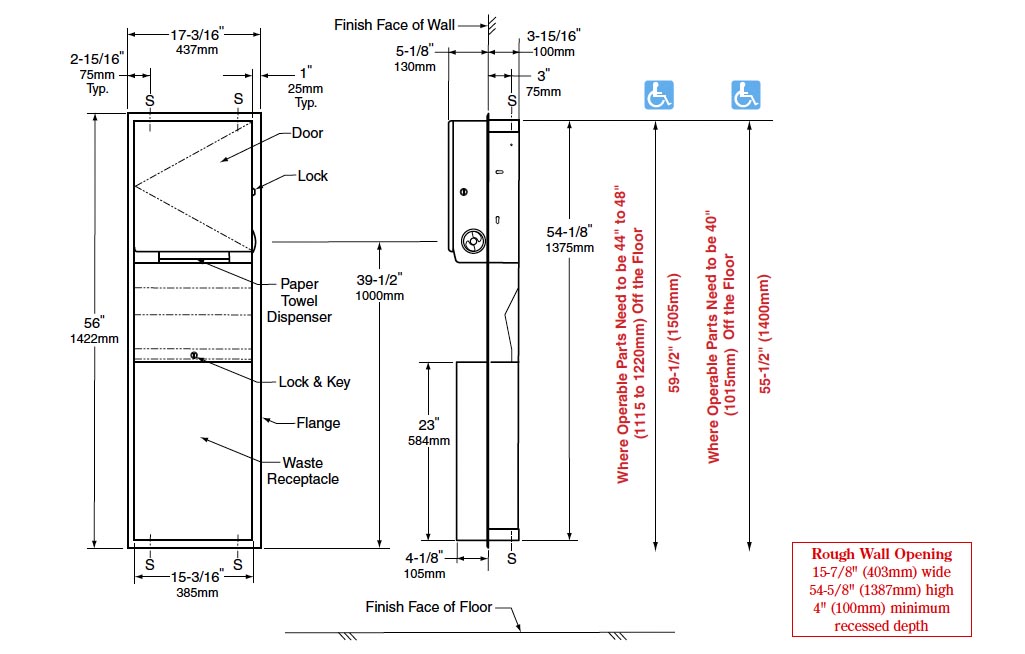

Measurement Diagram:
