Unit includes convertible folded paper towel module and 12-gallon waste receptacle. Satin-finish stainless steel. Seamless beveled flange. Dispenses 600 C-fold or 800 multifold towels. Removable waste receptacle is locked into cabinet. Receptacle is 8″ (205mm) deep with a capacity of 12-gallons (45.5-L) Receptacle extends 8 - 1/4″ (210mm) from the wall. Field conversion is made easy without replacing existing cabinets in the wall.
Interchangeable with:
368-60: Interchangeable receptacle, 18-gallons (68.1-L)
3974-250: Convertible automatic, universal roll paper towel dispenser module equipped with LED light
3961-50: “Touch-Free” Pull Towel Dispenser Module
Interchangeable with:
368-60: Interchangeable receptacle, 18-gallons (68.1-L)
3974-250: Convertible automatic, universal roll paper towel dispenser module equipped with LED light
3961-50: “Touch-Free” Pull Towel Dispenser Module
- 18-8, Type-304, 22-gauge (0.8mm) stainless steel with satin-finish.
- Rounded towel tray has hemmed opening to dispense paper towels without tearing.
- Paper towel dispenser accommodates C-fold or multifold paper towels without adjustment or use of adapters.
- Front and side edges of bottom and all top edges hemmed for safe handling.

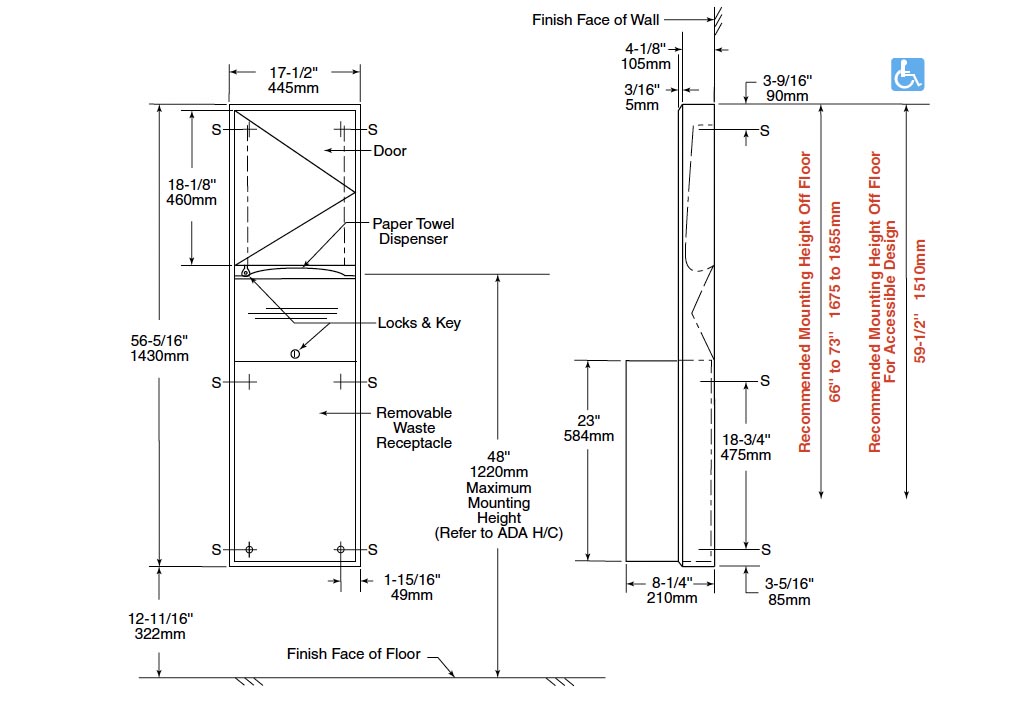

Measurement Diagram:
Architectural Specification:
Surface-mounted convertible paper towel dispenser and waste receptacle shall be Type-304 stainless steel with welded construction; exposed surfaces shall have satin finish. Flange shall be drawn and beveled, one-piece, seamless construction. Door shall be secured to cabinet with a full‑length stainless steel piano-hinge and equipped with a semi-concealed tumbler lock keyed like other Bobrick washroom accessories. Paper towel dispenser shall dispense 600 C-fold or 800 multifold paper towels. Removable waste receptacle shall be secured to cabinet with a tumbler lock, have front and side edges of bottom and all top edges hemmed for safe handling, and shall have a minimum capacity of 12-gal. (45.5-L).
