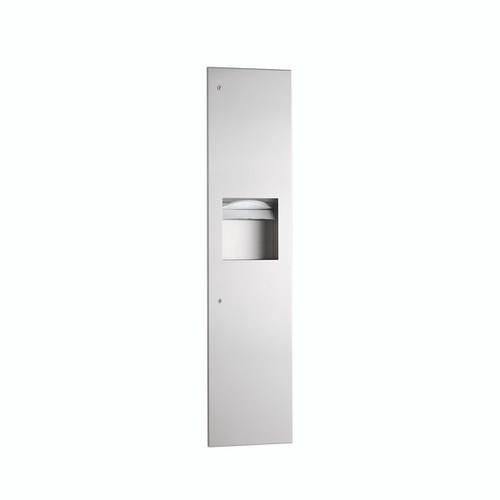

Satin finish stainless steel. Built in TowelMate®. Flush locks. Door has 90° return, conceals flange. Dispenses up to 600 C-fold or 800 multifold towels. Removable, leak-proof, 3.8-gal (14.4-L) waste container.
Rough Wall Opening: 11-1/2″ W, 53-5/8″ H, 3 -3/4″ min. depth (290 x 1360 x 95mm).
- Paper Towel Dispenser Capacity: 600 C-fold or 800 multifold paper towels
- Waste Container Capacity: 3.8-gal. (14.4-L).
- Paper towel dispenser is adjustable to dispense C-fold, multifold, or singlefold paper towels without use of additional adapters or towel trays
Measurement Diagram:
Architectural Specification:
Recessed paper towel dispenser and waste receptacle shall be Type-304 stainless steel with all-welded construction; exposed surfaces shall be satin-finish. Unit equipped with TowelMate consisting of a 90° return towel guide angle inside cabinet to prevent paper towels from falling forward out when door is opened for servicing and a Nylon Rod across the center of the towel tray to dispense paper towels one at a time. Door shall be 18 gauge (1.2mm); have 9/16'' (14mm) 90° return edges; be secured to cabinet with a concealed, full length stainless steel piano-hinge; and equipped with a stainless steel cable door-swing limiter and two tumbler locks keyed like other Bobrick washroom accessories. Tumbler locks flush with the door - no protrusion. Paper towel dispenser shall dispense 600 C-fold or 800 multifold paper towels. Waste receptacle shall be furnished with a removable, leak-proof, rigid molded plastic waste-container with a capacity of 3.8-gal. (14.4-L).
