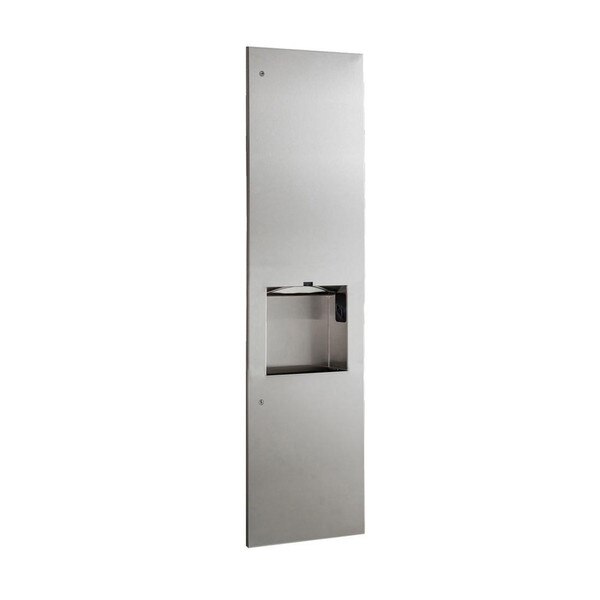

Bobrick B-38031-115V TrimLineSeries™ Recessed, Stainless Steel Paper Towel Dispenser, Automatic Hand Dryer & 7.2-Gallon Waste Receptacle
Flush TrimLineSeries® design, space-saving cabinet depth, and satin-finish stainless steel door compliments any washroom from Class-A offices to fine restaurants. Door has 90° return, conceals flange. Dispenses 600 multi-fold or 450 C-fold paper towels. Built-in TowelMate®. Removable, leak-proof, 7.2-gallons (27.4-L) waste container.
Paper towel dispenser is designed to dispense C-fold or multi-fold paper towels without use of additional adapters or towel trays.
Integrated LED indicator that flashes green when the dryer is ready, is solid green when the dryer is running and is solid red when the dryer is not ready to run.
Two coiled nickel-chrome heating elements are mounted in mica frame and protected by automatic thermal-overload switches. Heating elements heat air without hot spots — inaccessible to vandals.
Can be set to prioritize hand dryer or paper towels.
Electronic control has automatic shutoff approximately 1-1/2 minutes after dryer turns on if an inanimate object is placed in the activation zone.
Safety 1 minute auto-shut off and heat limiter (70°C).
Dryer has no-touch operation. There are two modes of operation, dryer promotion encourages use of dryer and paper promotion encourages use of paper towels. The unit is set in the factory to dryer promotion. Infrared emitter receiver sensor monitors the activation zone. Sensor LED will turn green and flash when dryer is ready for use. LED will turn red when dryer is not ready. When unit is set to dryer promotion, the dryer and green LED will turn on when hands are held under air-outlet opening and across path of sensor. Remove hands from path of sensor and dryer stops. When the unit is set to paper promotion, there is a 3 second delay before the dryer will turn on.
Certifications:

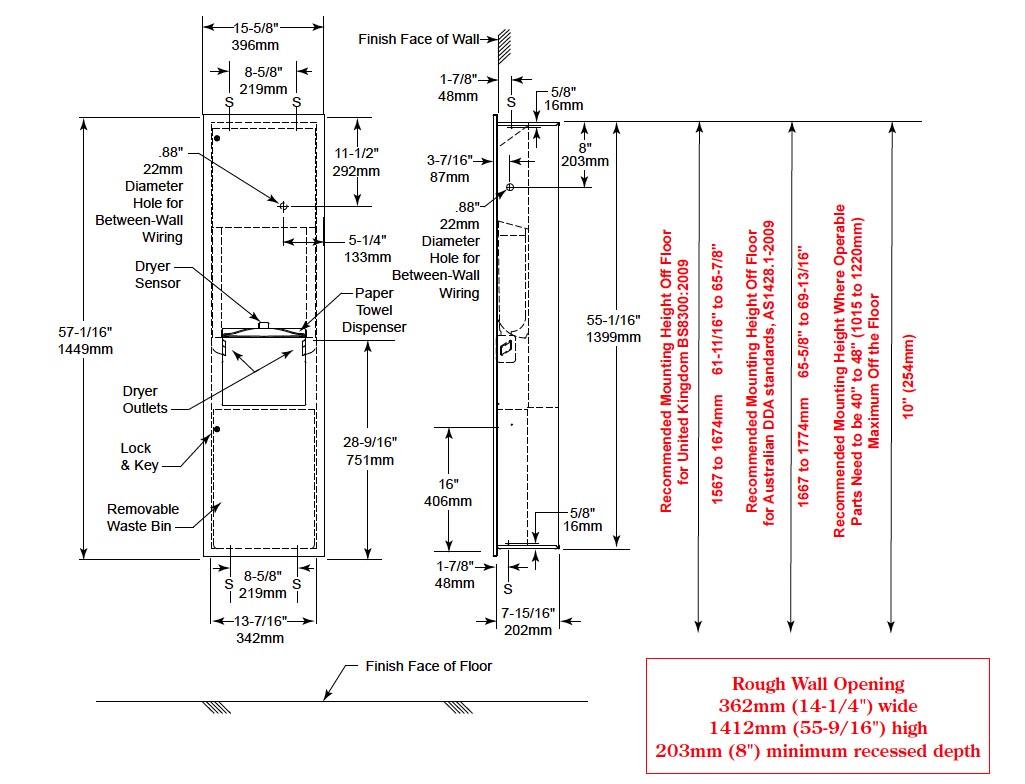

Measurement Diagram:
| Primary Material: | Stainless Steel |
| Color/Finish: | Satin |
| Installation Type: | Recessed |
| Rated Dry Time: | Not Published |
| Activation: | Hand Dryer: Automatic Paper Towel Dispenser: Manual |
| Power: | 110-120V AC, 8.0 Amp, 920 Watts, 50/60 Hz |
| Capacity: | 450 C-fold, 600 multifold paper towels 7.2 Gallons |
| Locks ?: | Tumbler Lock(s), use Bobkric key: 330-43 |
| Rough-In: | 14 - 1/4" Wide x 55 - 9/16" Tall x Minimum of 8" Deep |
| Overall Dimensions: | 15 - 5/8" Wide x 57 - 1/16" Tall x 8 - 11/16" Deep |
| Net Weight: | Approx. 44 lbs. |
| Shipping Dimensions: | 61" Length x 18" Width x 10" Height |
| Shipping Weight: | Approx. 46 lbs. |
| Manufacturer Model No.: | B-38031 115V |
| UPC / GTIN: | Not Published |
| Country of Manufacture: | United States |
| Warranty: | 1 Yr. Manufacturer's Limited |
Architectural Specifications:
Recessed Paper Towel Dispenser, Automatic Hand Dryer, And Waste Bin (3-in-1 unit) shall be type-304 stainless steel with all-welded construction; exposed surfaces shall have satin finish. Door shall be 1.2mm (18-gauge); have 14mm (9/16") 90° return edges; be secured to cabinet with concealed, full-length stainless steel piano-hinges; and equipped with a stainless steel cable door-swing limiter and two flush tumbler locks keyed like other Bobrick washroom accessories. Paper towel dispenser shall be capable of dispensing 600 multifold or 450 C-fold paper towels. Unit equipped with TowelMate consisting of a 90° return towel guide angle inside cabinet to prevent paper towels from falling forward out when door is opened for servicing and a Nylon Rod across the center of the towel tray to dispense paper towels one at a time. Waste bin shall be furnished with a removable, leak-proof, rigid molded plastic waste-container with a capacity of 27.4 liters (7.2 gal.). Directed air nozzles shall prevent dryer from blowing into waste bin. Hand dryer shall have a one-piece,18-8, type-304, 0.8mm (22-gauge) stainless steel cover. Dryer mounting base shall be 1.5mm (20-gauge) plated steel with three 6mm (0.236") diameter mounting holes. Fan housings shall be fire-retardant molded black plastic. Dryer shall be equipped with dual air outlets that run through two vertical ducts and out the black plastic nozzles under the towel dispenser. Motor shall be 1/7 hp, universal type on resilient mounting with sealed ball bearing at drive-shaft end and self-lubricating sleeve bearing at nondrive end; equipped with automatic thermal-overload switch. Heating elements shall be located on outlet side of fan, shall heat air without hot spots, be inaccessible to vandals, and protected by an automatic thermal-overload switch. The dryer will be controlled by the activation sensor which is part of the electronic control. The electronic control will never allow the dryer motor to be hotter than 70°C. Dryer shall turn off automatically when hands are removed. Sensor shall automatically shut dryer off approximately 1-1/2 minutes after dryer turns on if an inanimate object is placed in activation zone. After inanimate object is removed, electronic sensor shall automatically reset itself and dryer shall operate normally. The electronic control will have an LED that will flash green when the dryer is ready, be solid green when the dryer is running and be solid red when the dryer is not ready. Unit be CE marked and cUListed. Unit shall comply with EU Directive "Restriction of Hazardous Substance" (ROHS) requirements for non-use of certain hazardous substances in the production of electronic products. Unit shall be protected by a limited 1-year warranty from date of purchase on all parts except motor brushes.
