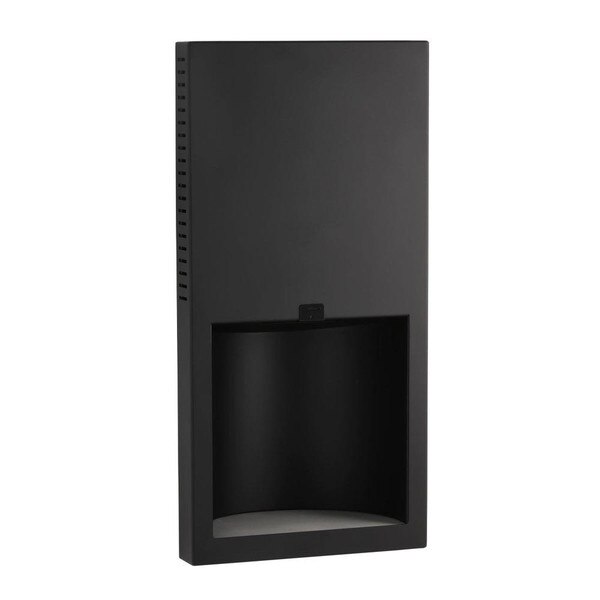

Bobrick B-3725.MBLK-115V ADA Recessed Automatic (Touchless) Hand Dryer, Matte Black, 110-120V
Contemporary design, ADA compliant recessed hand dryer. 6″ deep drying alcove with a curved back. Type 304 matte black powder coated finish stainless steel.
- Delivers a 17-second dry time at a very quiet 70dBA.
- Ceramic water absorbent surface to capture and evaporate water avoiding drips and puddles.
- Sustainable power rating of 1.0kW. (115V AC, 8.5 Amp., 50/60 Hz, 1000 Watts, Single Phase, cULus Listed.)
- Coiled Nichrome heating element mounted on a mica frame, protected by integral automatic thermal overload device. Heats air without hot spots and remains inaccessible to vandals.
- 5 Year Bobrick Limited Warranty
This model uses 110-120V AC (60Hz) power. For the high voltage model see Bobrick B-3725.MBLK-230V.
Certifications:

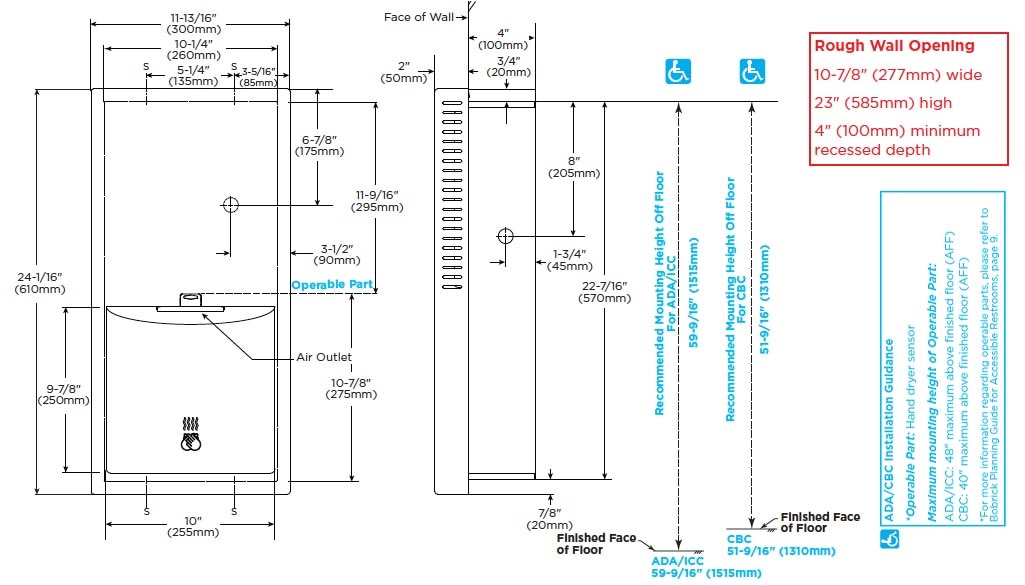

Measurement Diagram:
Alternatives:
For the brushed stainless steel version, see B-3725-115V automatic ADA hand dryer in matte black.
For the 220-240V version of this product, see B-3725.MBLK-230V
| Activation: | No-touch operation: Infrared sensor monitors the activation zone. LED flashes green and flash when dryer is ready for use. LED is red when dryer is not ready |
| Mount: | Wall Mount / Semi-recessed |
| Cover: | 18-8, type-304, 18-gauge (1.2mm) stainless steel, matte black powder coated finish |
| Cycle Time: | Not applicable Dryer stops when hands are removed. |
| Nozzle: | Black plastic air nozzle assembly attached to the dryer. |
| Power: | 115V AC, 8.5 Amp, 1000 Watts, 50/60 Hz, Single Phase, cULus Listed. |
| Motor: | Thermally protected, Universal, 1/7 hp, 8000 rpm motor, on resilient mounting |
| Fan: | Cylindrical, Vented |
| Airspeed: | Not published |
| Heating Element: | Coiled Nichrome heating element mounted on a mica frame, protected by integral automatic thermal overload device. Heats air without hot spots and remain inaccessible to vandals. |
| Filter: | None |
| IP Rating: | Not published |
| Product Dimensions: | 11-13/16" Wide x 24-1/16" Tall x 6" Deep (Projects 2" out from wall.) |
| Shipping Dimensions: | 27.5" Length x 13.8" Width x 8" Height |
| Shipping Weight: | 18.5 lbs. |
| UPC / GTIN: | Not published |
| Manufacturer Model No.: | B-3725.MBLK-115V |
| Country of Manufacture: | CHN |
| Warranty: | 5-Year Limited Manufacturer's Warranty |
| Additional Comments: | 5 Yr. Manufacturer's |
Architectural Specifications:
Recessed Automatic Hand Dryer with a 6" deep drying alcove to capture dripping water shall be type-304 stainless steel with all-welded construction; exposed surfaces shall have satin finish. Cover shall be 18-gauge (1.2mm) with a 2" (51mm) projection from the wall. All welded corners secured to cabinet with vandal-resistant screws. Directed air nozzle shall prevent dryer from splashing water on the floor and or user. Hand drying alcove is equipped with a ceramic water absorbent surface to capture and evaporate water. Fan housings shall be fire-retardant molded black plastic. Motor shall be 1/7 hp, universal type equipped with automatic thermal-overload switch. Heating elements shall be located on outlet side of fan, shall heat air without hot spots, be inaccessible to vandals, and protected by an automatic thermal-overload switch. Dryer shall turn off automatically when hands are removed. LED will flash green when the dryer is ready, is solid green when the dryer is being used and is solid red when the dryer is not ready. Unit shall be CE marked and cUListed. Unit shall be protected by a limited 5-year warranty from date of purchase on all parts except motor brushes and absorbent material.
