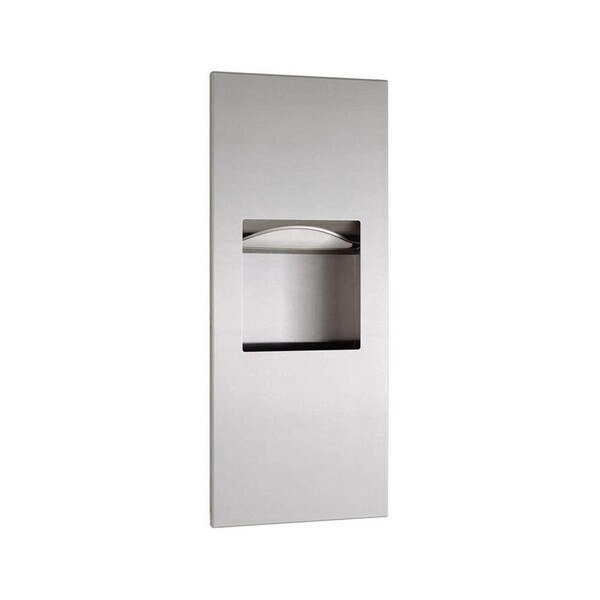

Bobrick B-36903 TrimLineSeries™ Recessed, Stainless Steel Paper Towel Dispenser w/Built-In TowelMate® & 1.6-Gallon Waste Receptacle
Satin-finish stainless steel. Built in TowelMate®. Door has 90° return. Dispenses 300 C-fold or 400 multifold towels. Removable, leak-proof, 1.6-gallons (6.1-L) waste container. Rough Wall Opening: 11 - 1/2″ W x 29 - 1/2″ H x 3 - 3/4″ minimum depth (290 x 750 x 95mm).
Dispenses C-fold or multifold paper towels without adjustment or use of adapters.
Waste receptacle is serviced by opening door and removing waste container.
Door conceals flange from view. Cable door-swing limiter prevents damage to washroom accessories and walls.
Equipped with TowelMate consisting of a 90° return towel guide angle inside cabinet to prevent paper towels from falling forward out when door is opened for servicing and a Nylon Rod across the center of the towel tray to dispense paper towels one at a time.
Door secured to cabinet with a full-length stainless steel piano-hinge and equipped with a knob latch.

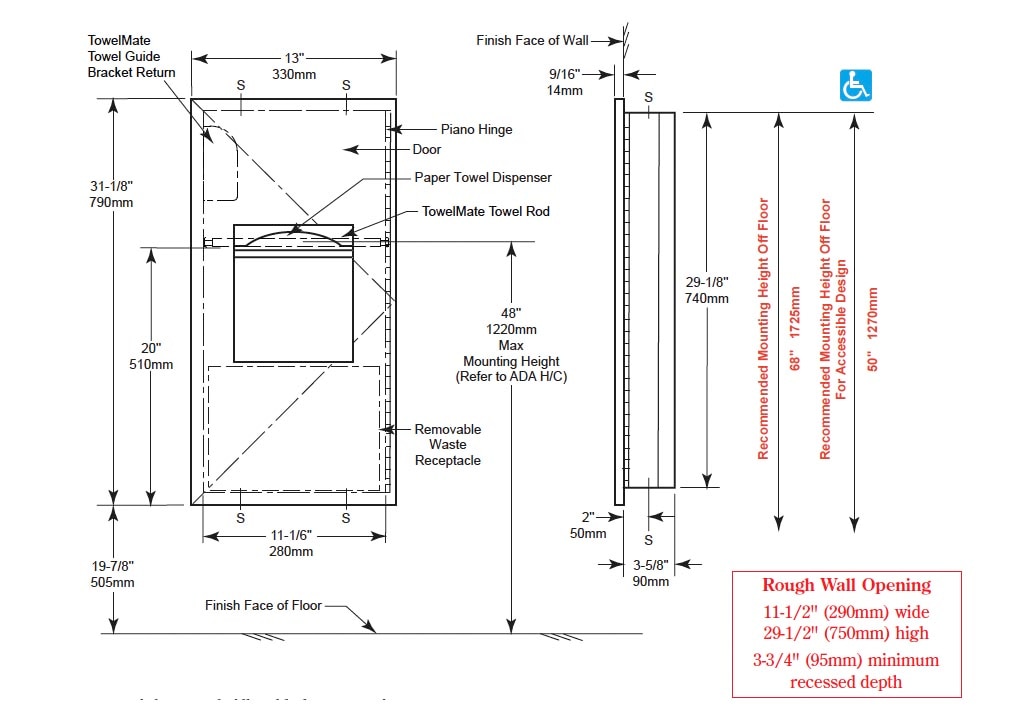

Measurement Diagram:
| Type: | C-Fold / Multi-Fold Paper Towel Dispenser with Integrated Waiste Container |
| Primary Material: | Stainless Steel |
| Color / Finish: | Satin (Brushed) |
| Installation Type: | Wall / Recessed |
| Capacity: | 350 C-Fold or 475 Multi-Fold Paper Towels |
| Waste Bin Capacity: | 1.6 Gal. |
| Power: | No power required |
| ADA Compliant: | Yes |
| Overall Dimensions: | 13" Wide x 31 - 1/8" Tall x 4 - 3/16" Deep |
| Rough-In: | 11 - 1/2" Wide x 29 - 1/2" Tall x Minimum of 3 - 3/4" Deep |
| Shipping Dimensions: | 34" Length x 16" Width x 7" Height |
| Shipping Weight: | 13 lbs |
| Manufacturer Model No.: | B-36903 |
| UPC / GTIN: | 716954001979 |
| Country of Manufacture: | Canada |
| Warranty: | 1 Yr. Manufacturer's Limited |
| Additional Comments: | Cabinet does not lock. |
Architectural Specifications:
Recessed paper towel dispenser and waste receptacle shall be Type-304 stainless steel with all-welded construction. Exposed surfaces shall have satin finish. Unit equipped with TowelMate consisting of a 90° return towel guide angle inside cabinet to prevent paper towels from falling forward out when door is opened for servicing and a Nylon Rod across the center of the towel tray to dispense paper towels one at a time. Door shall be 18 gauge (1.2mm); have 9/16" (14mm) 90° return edges; be secured to cabinet with a concealed, full-length stainless steel piano-hinge; and equipped with a stainless steel cable door-swing limiter and friction catch. Door conceals flange from view. Paper towel dispenser shall be capable of dispensing 300 C-fold or 400 multifold paper towels without adjustment or use of adapters. Waste receptacle shall be furnished with a removable, leakproof, rigid molded plastic waste-container with a capacity of 1.6-gal. (6.1-L).
