Satin-finish stainless steel. Built in TowelMate®. Tumbler lock flush with the door – no protrusion. Unit equipped with one tumbler lock keyed like other Bobrick washroom accessories. Dispenses 300 C-fold or 400 multi-fold towels. Rough Wall Opening: 292 x 403 x 95 mm (11 - 1/2″ W x 15 - 7/8″ H x 3 - 3/4″ min. depth).
- Dispenses C-fold or multifold paper towels without adjustment or use of adapters.
- 18-8, type-304, 22-gauge (0.8mm) stainless steel.
- Door-swing limiter prevents damage to washroom accessories and walls.

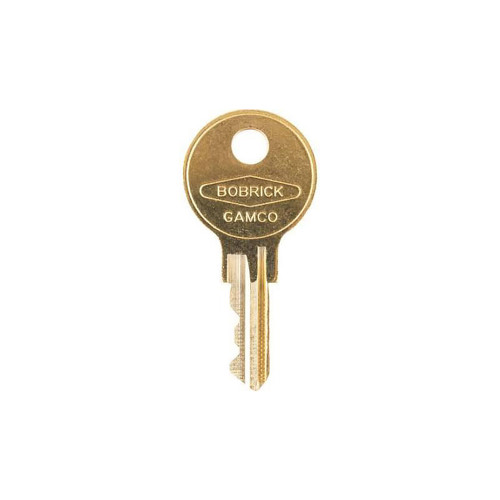

- Tumbler lock keyed like other Bobrick washroom accessories
- Includes TowelMate® Towel Rod Assembly
Available replacement parts include: Skirt Kit (359039-53) and Door Replacement Kit (359039-173)

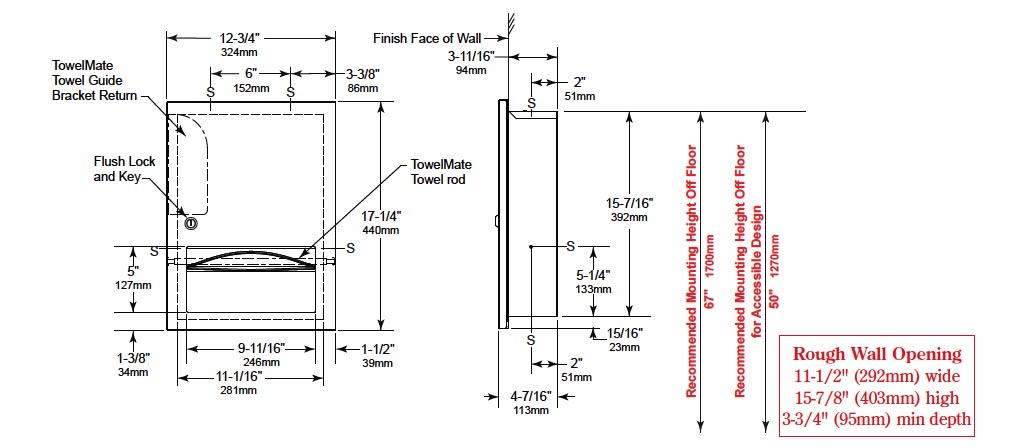

Measurement Diagram:
Architectural Specification:
Recessed paper towel dispenser shall be Type-304 stainless steel with all-welded construction; exposed surfaces shall have satin finish. Unit equipped with TowelMate consisting of a 90° return towel guide angle inside cabinet to prevent paper towels from falling forward out when door is opened for servicing and a Nylon Rod across the center of the towel tray to dispense paper towels one at a time. Door shall be Type-304, 18 gauge (1.2mm) secured to cabinet with a concealed, full-length stainless steel piano-hinge; and equipped with a stainless steel cable door-swing limiter and a tumbler lock keyed like other Bobrick washroom accessories. Tumbler lock flush with the door - no protrusion. Paper towel dispenser shall be 18-8, Type-304, 22-gauge (0.8mm) stainless steel. Capacity: 300 C-fold or 400 multifold paper towels.
