Satin-finish stainless steel. Seamless beveled flange. Dispenses 350 C-fold or 475 multi-fold towels. Door equipped with full-length stainless steel piano-hinge at bottom; swings down for easy filling. Rough wall opening: 285 x 395 x 100 mm (11 - 1/4” W x 15 - 5/8” H x 4” min. depth).
- Dispenses C-fold or multifold paper towels without adjustment or use of adapters.
- 18-8, type-304, 22-gauge (0.8mm) stainless steel.
- Double-pan-back construction is warp-resistant. Secured to cabinet with a welded, full-length stainless steel piano-hinge.
- Tumbler lock keyed like other Bobrick washroom accessories
This dispenser features a handy integrated shelf 10-7/8" Wide x 4" Deep.

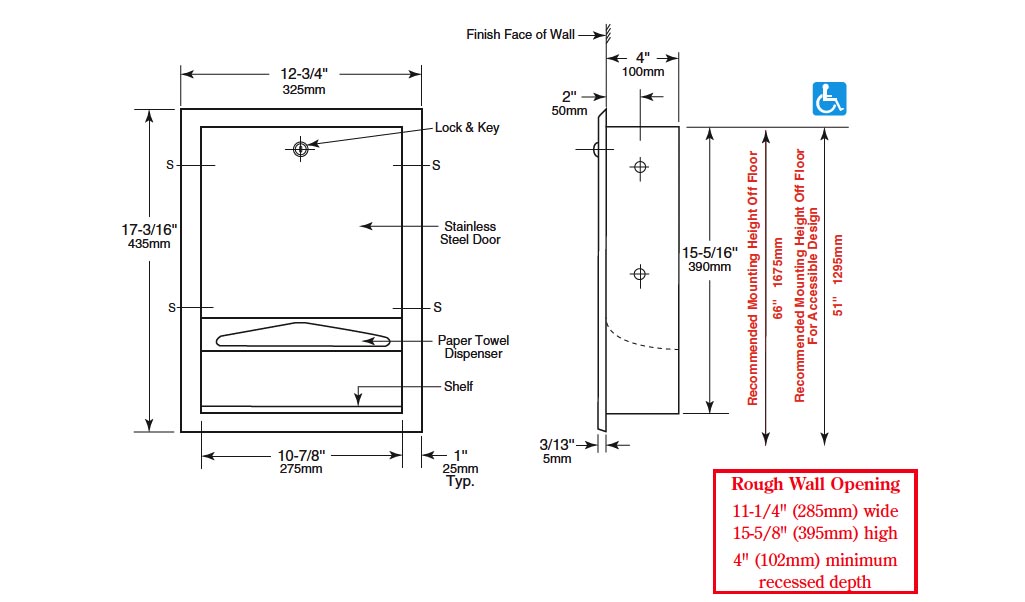

Measurement Diagram:
Architectural Specification:
Recessed paper towel dispenser shall be type-304 stainless steel with all-welded construction; exposed surfaces have satin finish. Flange shall be drawn, one-piece, seamless construction. Door shall be secured to cabinet with a welded, full-length, stainless steel piano-hinge and equipped with a stainless steel cable door-swing limiter and tumbler lock keyed like other Bobrick washroom accessories. Shelf shall be stainless steel with satin finish. Paper towel dispenser shall dispense 350 C‑fold or 475 multifold paper towels without additional adapters or trays.
