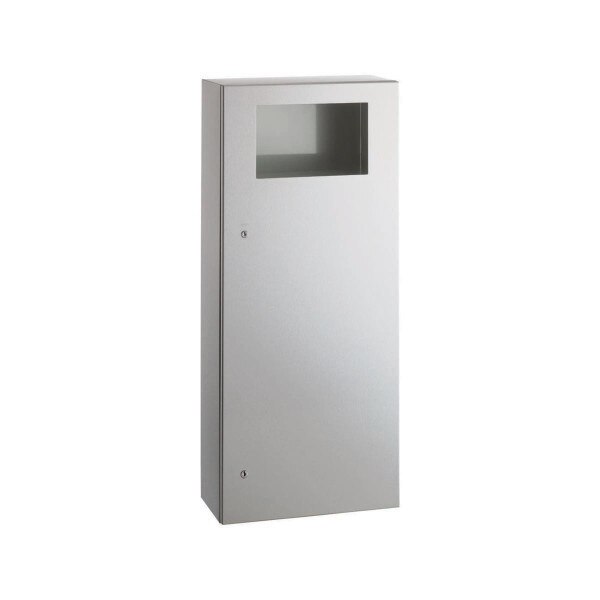

Bobrick B-35649 TrimLineSeries™ Surface-Mounted, Satin Stainless Steel , 12 Gallon Waste Receptacle
Surface-mounted satin-finish stainless steel with all-welded construction. Flush locks. Door is secured to cabinet with a concealed, full-length stainless steel piano-hinge, cable door-swing limiter and equipped with two tumbler locks keyed like other Bobrick washroom accessories. Removable, leak-proof waste receptacle with a capacity of 12-gallons (45.5-L). Skirt is removable in the field for optional recessed mounting.

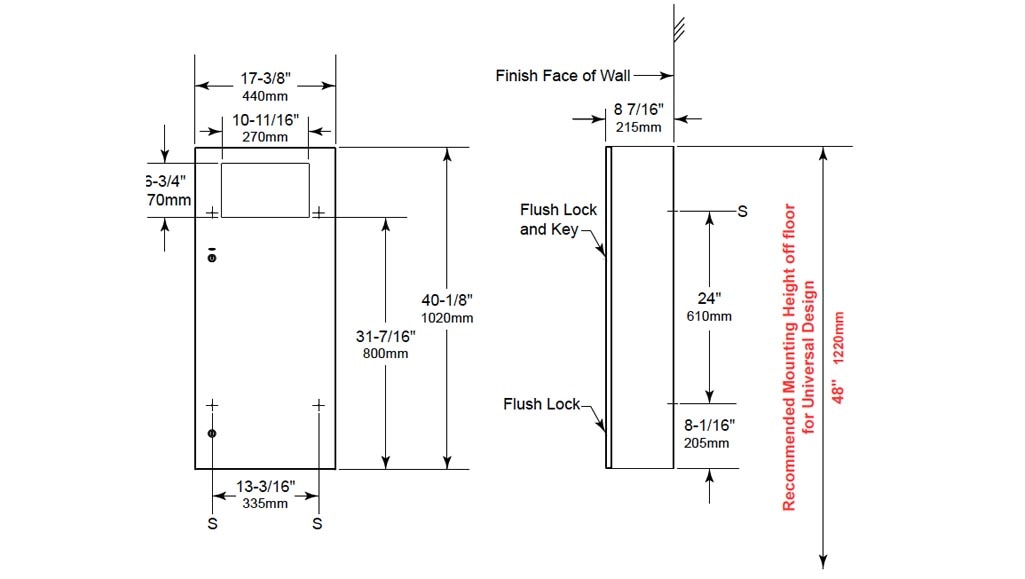

Measurement Diagram:
| Primary Material: | Stainless Steel |
| Color/Finish: | Satin |
| Installation Type: | Wall / Surface |
| Capacity: | 12 Gallons |
| Locks ?: | Tumbler Lock(s), use Bobkric key: 330-43 |
| Overall Dimensions: | 17 - 3/8" Wide x 40 - 1/8" Tall x 8 - 7/16" Deep |
| Net Weight: | 24 lbs |
| Shipping Dimensions: | 40.1" Length x 17.4" Width x 8.4" Height |
| Shipping Weight: | 24 lbs |
| Manufacturer Model No.: | B-35649 |
| UPC / GTIN: | 716954014252 |
| Country of Manufacture: | United States |
| Warranty: | 1 Yr. Manufacturer's Limited |
Architectural Specifications:
Surface-mounted waste receptacle shall be Type-304 stainless steel with all-welded construction; exposed surfaces shall have satin finish. Door shall be Type-304, 18 gauge (1.2mm) secured to cabinet with a concealed, full-length stainless steel piano-hinge, cable door-swing limiter and equipped with two tumbler locks keyed like other Bobrick washroom accessories. Tumbler locks flush with the door - no protrusion. Waste receptacle shall be furnished with a removable, leak-proof, rigid molded plastic waste-container with a minimum capacity of 12-gal. (45.4-L).
