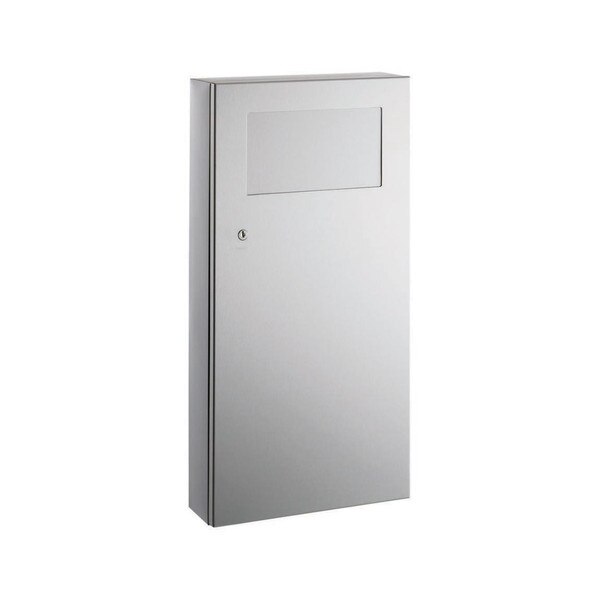

Bobrick B-35639 TrimLineSeries™ Surface-Mounted, Satin Stainless Steel Waste Receptacle with Disposal Door
Surface-mounted satin-finish stainless steel with all-welded construction. Flush lock. Door is secured to cabinet with a concealed, full-length stainless steel piano-hinge, cable door-swing limiter, and equipped with a tumbler lock keyed like other Bobrick washroom accessories. Self-closing panel covers disposal opening. Waste receptacle constructed of heavy-gauge stainless steel with a capacity of 3-gallons (11.3-L). Skirt is removable in the field for optional recessed mounting.

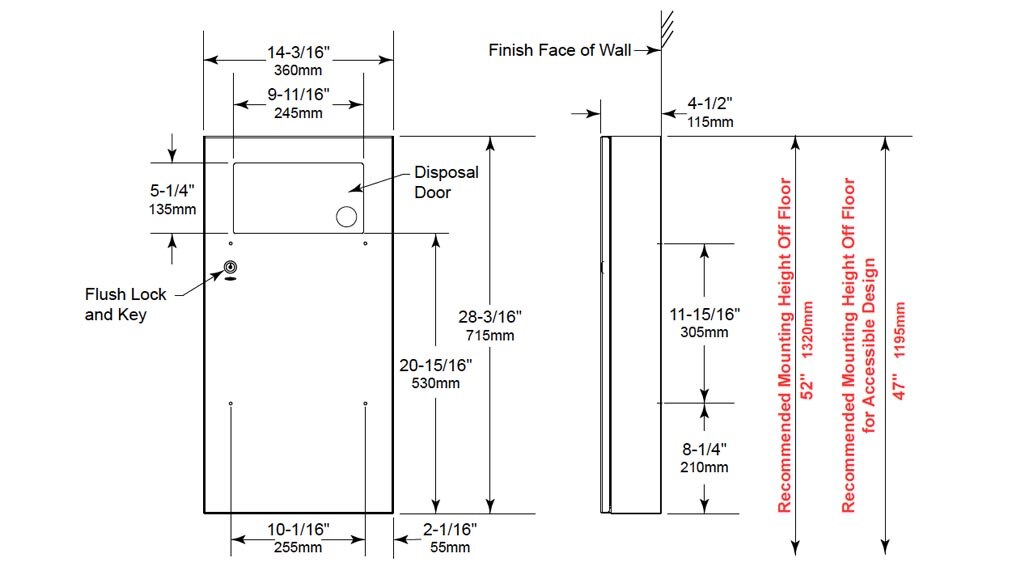

Measurement Diagram:
| Primary Material: | Stainless Steel |
| Color/Finish: | Satin |
| Installation Type: | Wall / Surface |
| Capacity: | 3 Gallons |
| Locks ?: | Tumbler Lock(s), use Bobkric key: 330-43 |
| Overall Dimensions: | 14 - 3/16" Wide x 28 - 3/16" Tall x 4 - 1/2" Deep |
| Net Weight: | 22 lbs |
| Shipping Dimensions: | 28.4" Length x 14.2" Width x 4.5" Height |
| Shipping Weight: | 22 lbs |
| Manufacturer Model No.: | B-35639 |
| UPC / GTIN: | 716954014276 |
| Country of Manufacture: | United States |
| Warranty: | 1 Yr. Manufacturer's Limited |
Architectural Specifications:
Surface-mounted waste receptacle with disposal door shall be Type-304 stainless steel with all-welded construction; exposed surfaces shall have satin finish. Door shall be Type-304, 18 gauge (1.2mm) secured to cabinet with a concealed, full-length stainless steel pianohinge, cable door-swing limiter and equipped with a tumbler lock keyed like other Bobrick washroom accessories. Tumbler lock flush with the door - no protrusion. Waste receptacle shall be Type-304, heavy-gauge stainless steel. All-welded construction with a capacity of 3-gal. (11.3-L).
