Recessed mounted satin-finish stainless steel with all-welded construction. Flush lock.
Door is secured to cabinet with a concealed, full-length stainless steel piano-hinge, cable door-swing limiter and equipped with a tumbler lock keyed like other Bobrick washroom accessories.
Self-closing panel covers disposal opening. Waste bin constructed of heavy-gauge stainless steel with a capacity of 3-gal (11.3-L). Skirt is removable in the field for optional recessed mounting.
- Rough Wall Opening: 12-5/8″ W x 26-1/2″ H x 3-3/4″ min. depth (321 x 673 x 95mm).
- 18-8, Type-304, heavy-gauge stainless steel

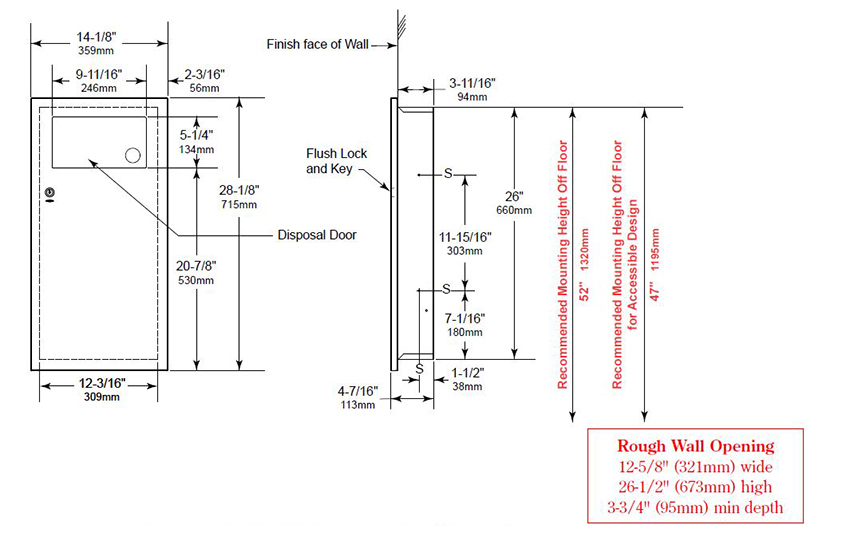

Measurement Diagram:
