Satin-finish stainless steel. Equipped with concealed locking device. Concealed wall plate, 22-gauge (0.8mm) type-304 stainless steel. Holds one pack of 25 two-ply plastic bags. Bags not supplied. 3 - 3/4" x 4 - 1/8" x 1" (95mm x 105mm x 25mm).
- Sanitary disposal bag pulls out. Cover snaps off for filling.
For partitions with particle-board or other solid core, secure with two #8 x 1/2'' (M4.2 x 12.5mm) sheet-metal screws (not furnished) at all points indicated by an S, or provide through-bolts, nuts, and washers.
For hollow-core metal partitions, provide solid backing into which sheet-metal screws can be secured. If two units are installed back-to-back, then provide threaded sleeves and machine screws for the full thickness of partition.
For masonry walls, provide fi ber plugs or expansion shields for use with sheet-metal screws, or provide 3/16" (5mm) toggle bolts or expansion bolts.
For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with sheet-metal screws.

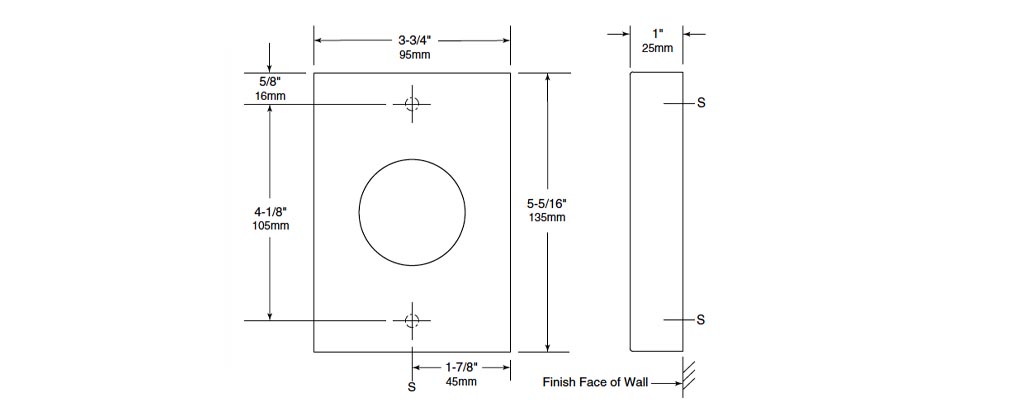

Measurement Diagram:
Architectural Specification:
Surface-mounted sanitary disposal bag dispenser shall be type-304 stainless steel. Exposed surfaces shall have satin fi nish. Cover shall snap off wall plate for refi lling. Unit shall have a capacity of one sanitary disposal bag box.
